Description

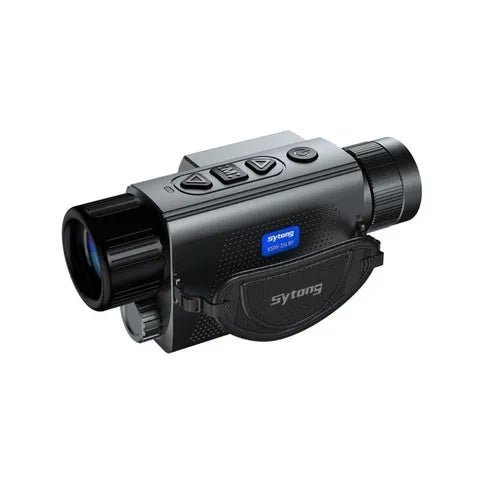

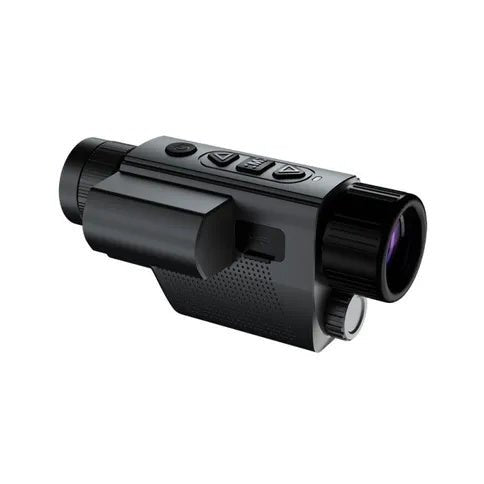

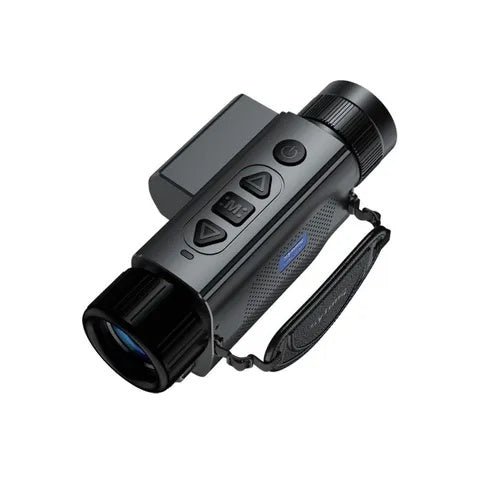

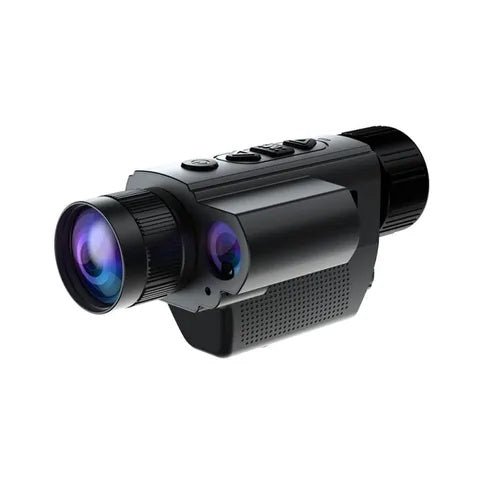

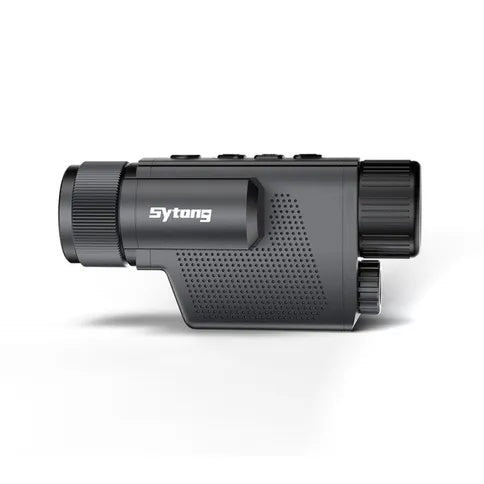

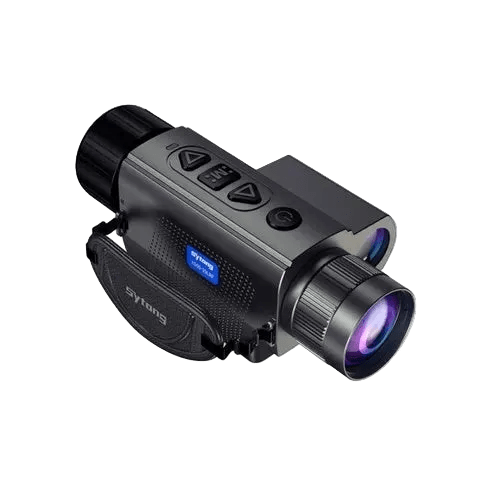

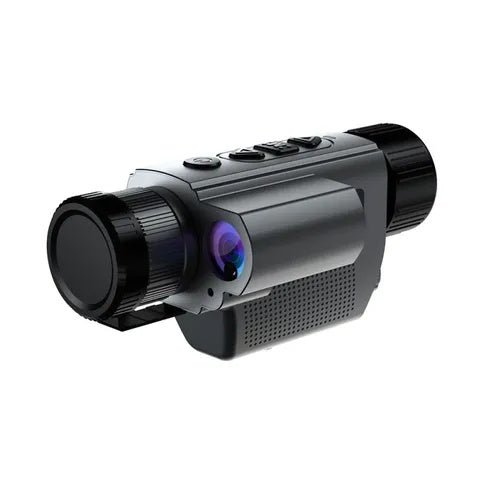

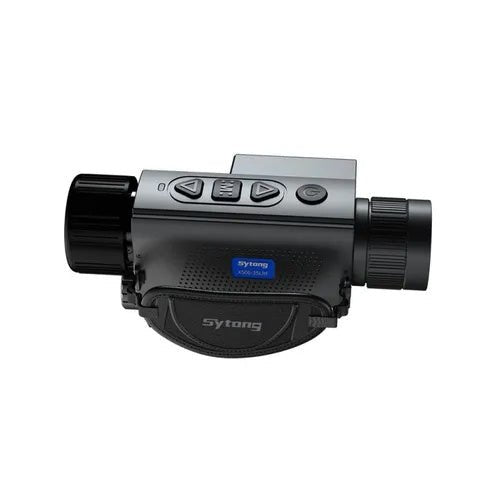

Compact Handheld Thermal Monocular with 1200m Laser Rangefinder
The Sytong XS06-25LRF is a compact handheld thermal camera built for fast scanning, clear thermal detail, and practical field use. Featuring a 640x512 12µm thermal sensor, 25mm objective lens, 1200m laser rangefinder, and WiFi plus video recording, it delivers strong thermal performance in a lightweight monocular format suited to hunting, security, observation, and search applications.
Note: This product is made to order with an estimated delivery time of 3 to 4 weeks.
Key Features
- 640x512 Thermal Sensor: High-resolution thermal imaging for strong detail and target recognition
- 12µm Pixel Pitch: Improved image sharpness and detection performance
- NETD ≤18mK: High thermal sensitivity for clearer contrast in difficult conditions
- 25mm Objective Lens: Balanced setup for wide-area scanning and practical detection range
- Wide 17.5° x 13.1° Field of View: Faster searching and better situational awareness

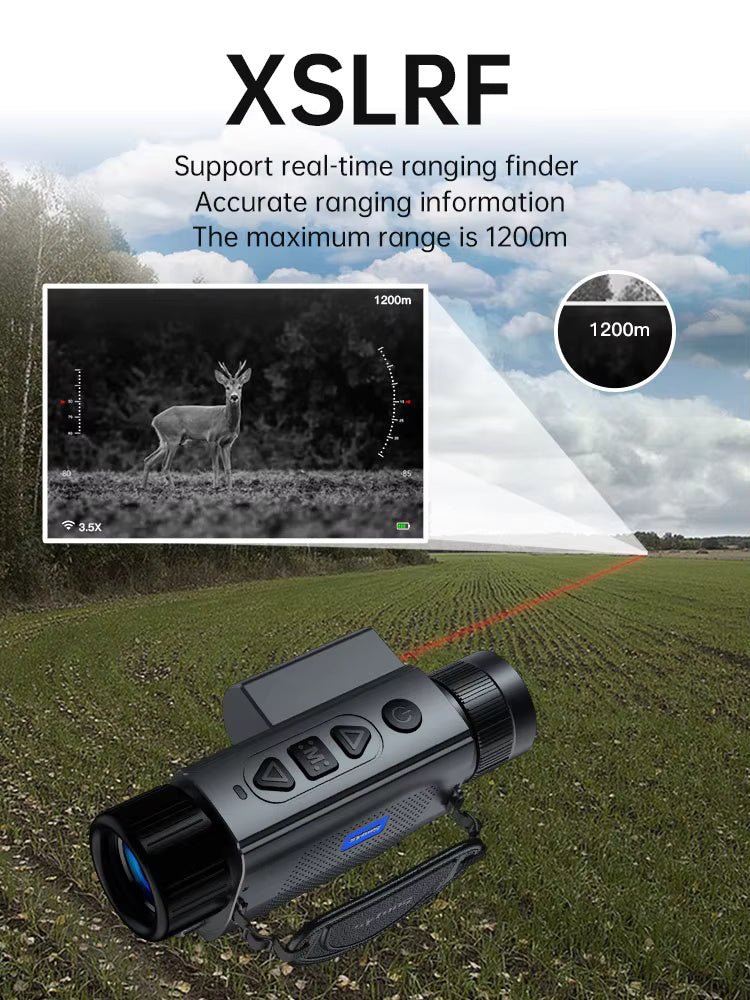

- Integrated 1200m Laser Rangefinder: Accurate distance measurement for field observation
- Detection Range up to 1250m: Effective handheld thermal performance in a compact unit
- Digital Zoom: 1x / 2x / 4x / 6x / 8x for closer target inspection
- 1024x768 AMOLED Display: Bright, high-contrast image with strong colour depth
- Picture-in-Picture (PIP): Enlarged target view while maintaining full field awareness
- Video Recording with Audio: Capture what you see directly from the device

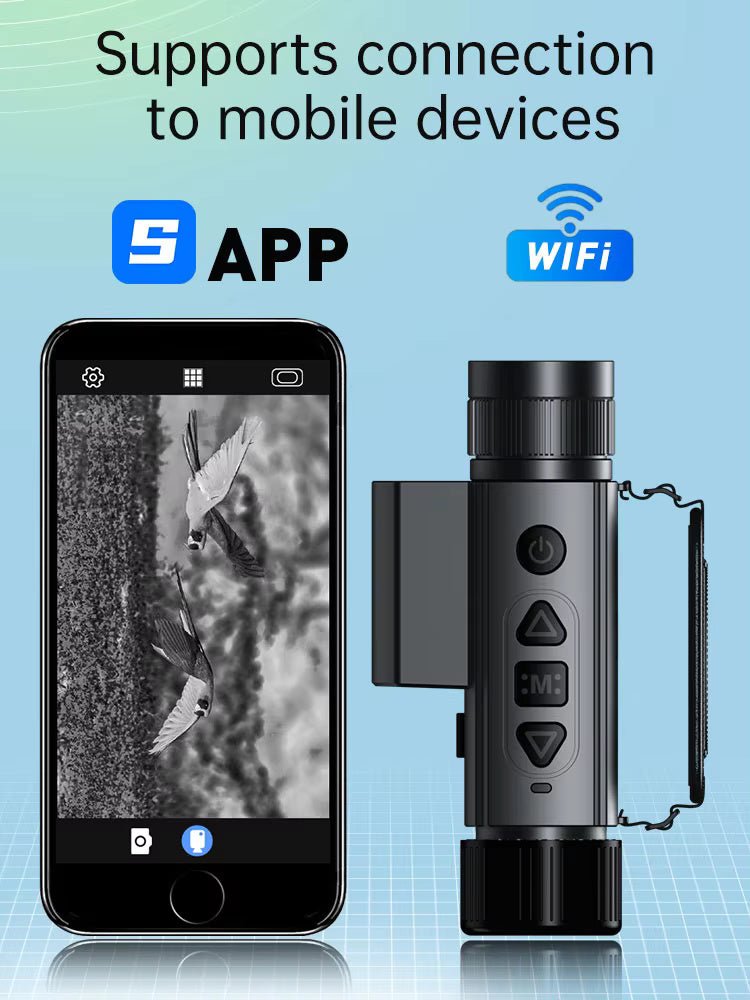

- WiFi Connectivity: Connect to Android and iOS devices for viewing and file transfer

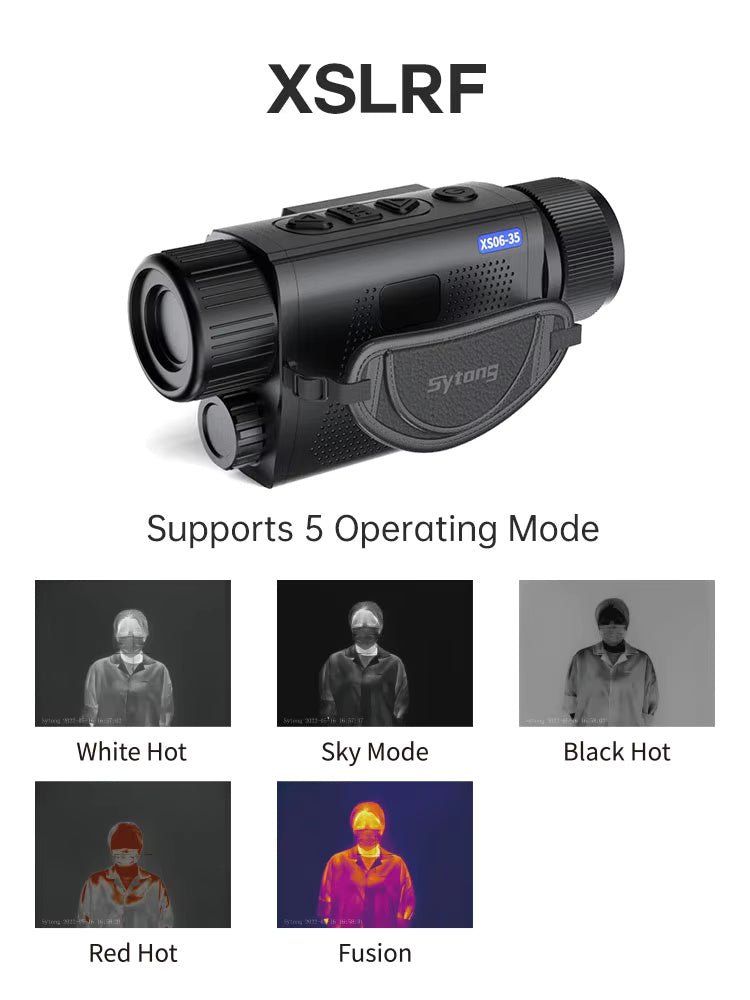

- Multiple Colour Palettes and Visual Modes: Adjust image presentation to suit conditions
- Compact and Lightweight: Only 440g, ideal for handheld use
- IP66 Water Resistance: Built for outdoor conditions
Technical Specifications
- Model: XS06-25LRF
- Sensor Resolution: 640 x 512
- Pixel Size: 12µm
- Objective Lens: 25mm
- NETD: ≤18mK
- Field of View: 17.5° x 13.1°
- Detection Range: 1250m
- Laser Rangefinder: 1200m
- Digital Zoom: 1x / 2x / 4x / 6x / 8x
- Minimum Focus Distance: 5m
- Display Type: AMOLED
- Display Resolution: 1024 x 768
- Picture-in-Picture: Yes
- WiFi: Yes
- Video Recording: Yes, with audio
- Run Time: Up to 4 hours
- Protection Rating: IP66
- Operating Temperature: -20°C to +50°C
- Dimensions: 156 x 68 x 75mm
- Weight: 440g
Perfect For
- Handheld Thermal Observation: Compact monocular design for easy carry and fast deployment
- Hunting and Wildlife Spotting: Wide field of view and strong thermal detail for scanning
- Security and Patrol Use: Practical thermal detection with rangefinding support
- Search and Rescue Applications: Lightweight format with strong image clarity and recording features
Why Choose the Sytong XS06-25LRF?
The XS06-25LRF combines high-resolution thermal imaging, a wide field of view, and an integrated laser rangefinder in a compact handheld unit. With recording, WiFi, and practical field-ready durability, it’s a versatile thermal monocular for users who need strong performance in a portable format.
Upgrade your setup with the Sytong XS06-25LRF Handheld Thermal Camera today.
Note: This product is made to order with an estimated delivery time of 3 to 4 weeks.
