Description
640×512 / NETD <18mK, PIP, WiFi + Recording (IP66 / 10,000J)

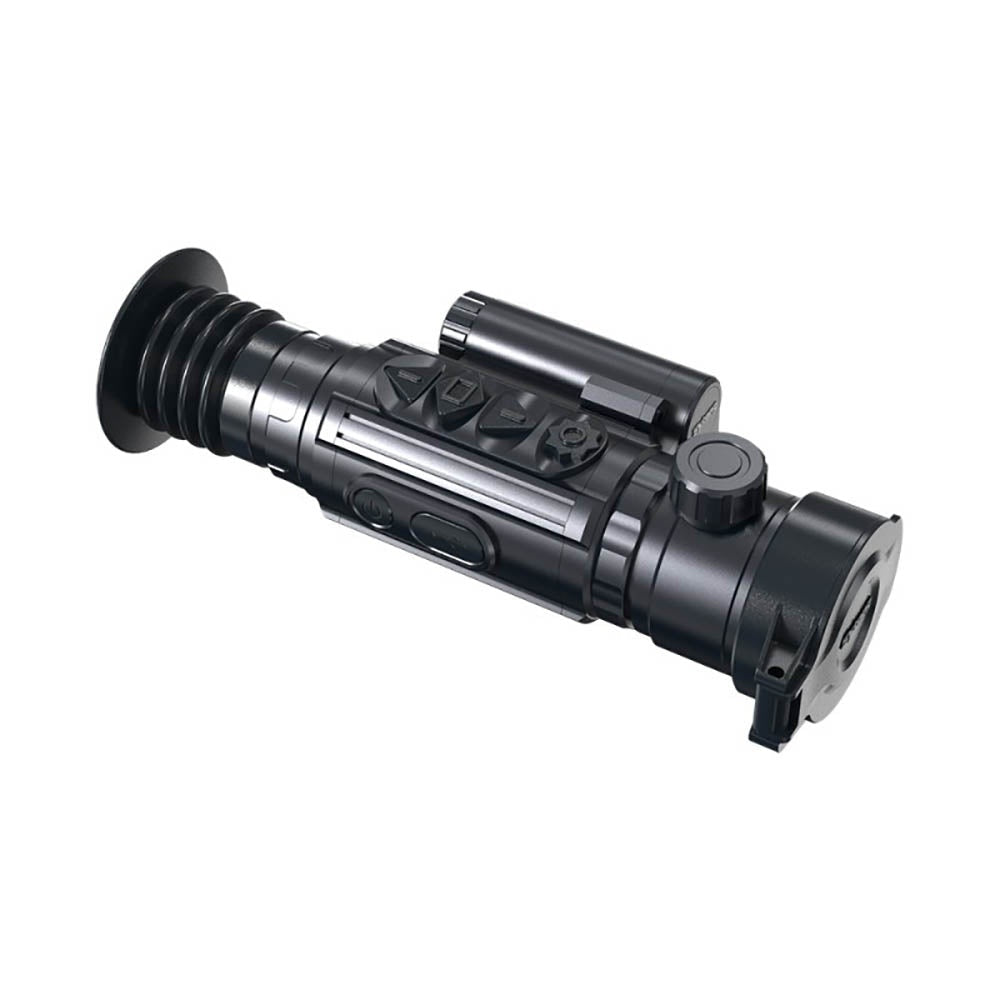

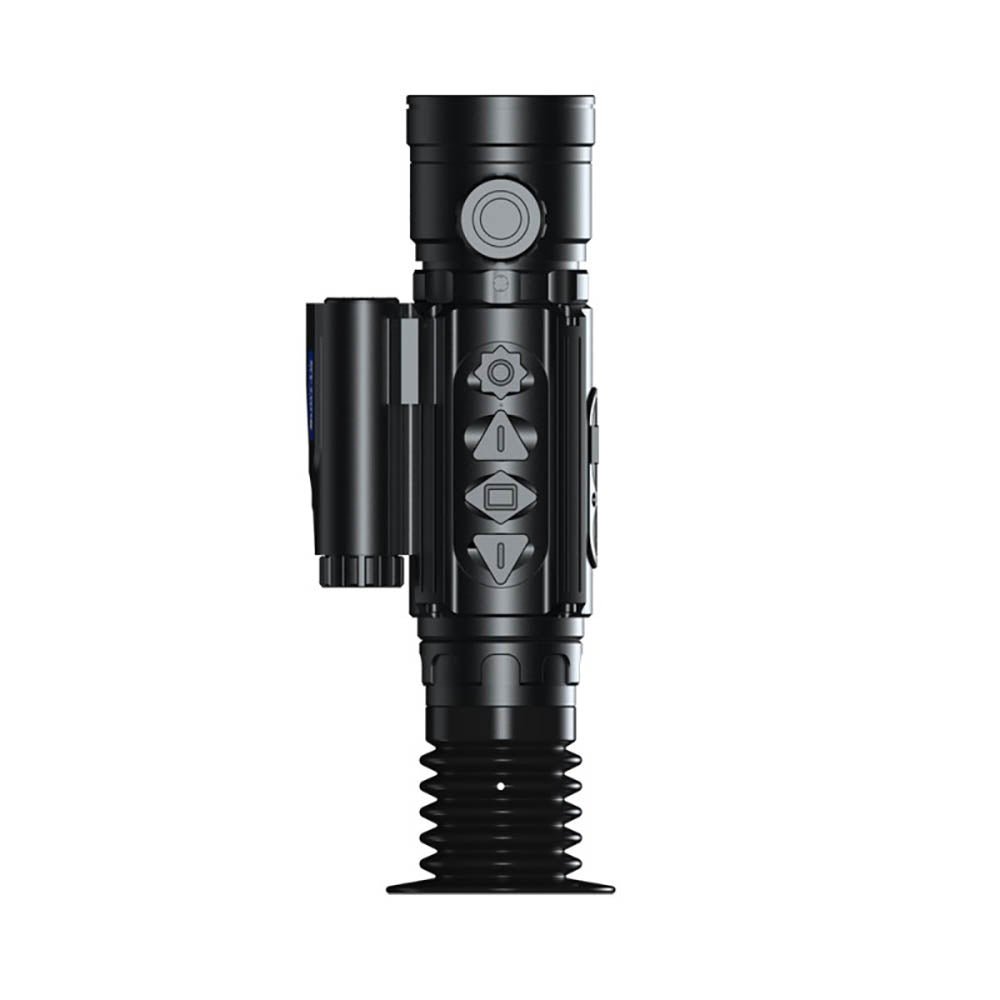

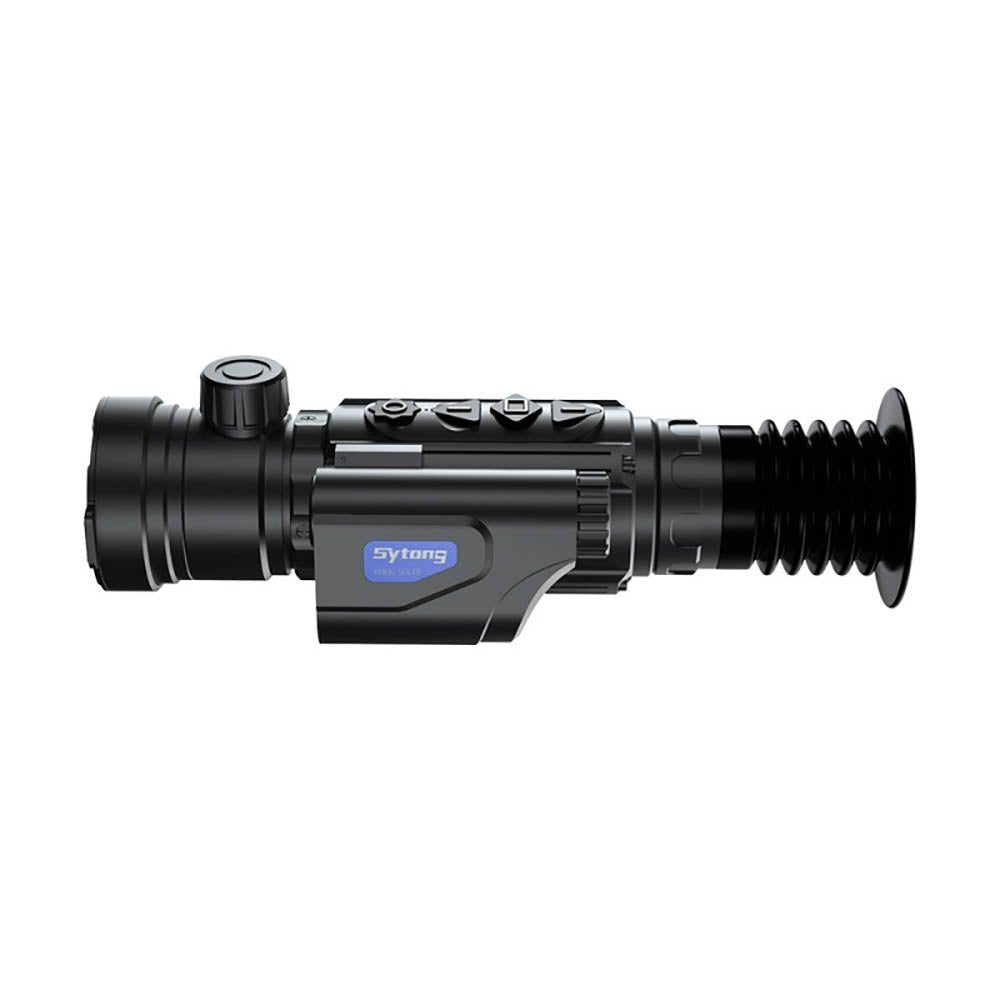

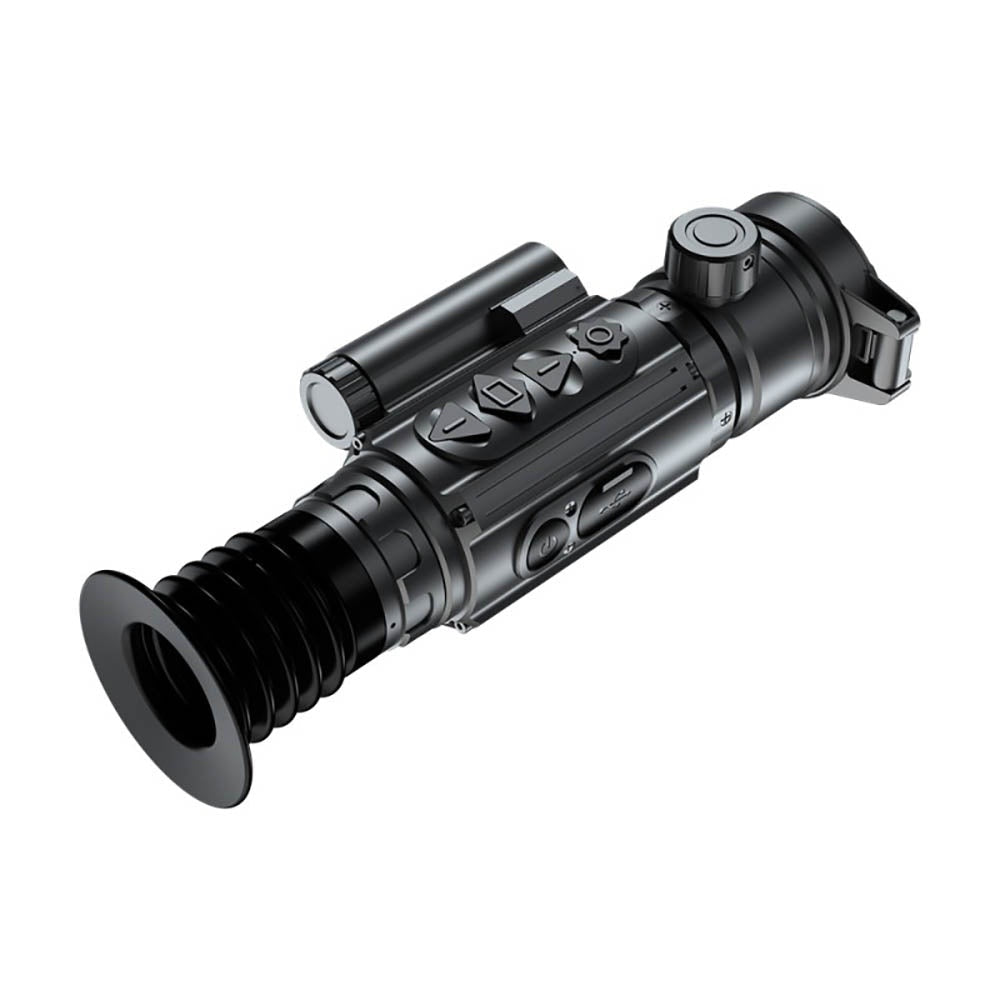

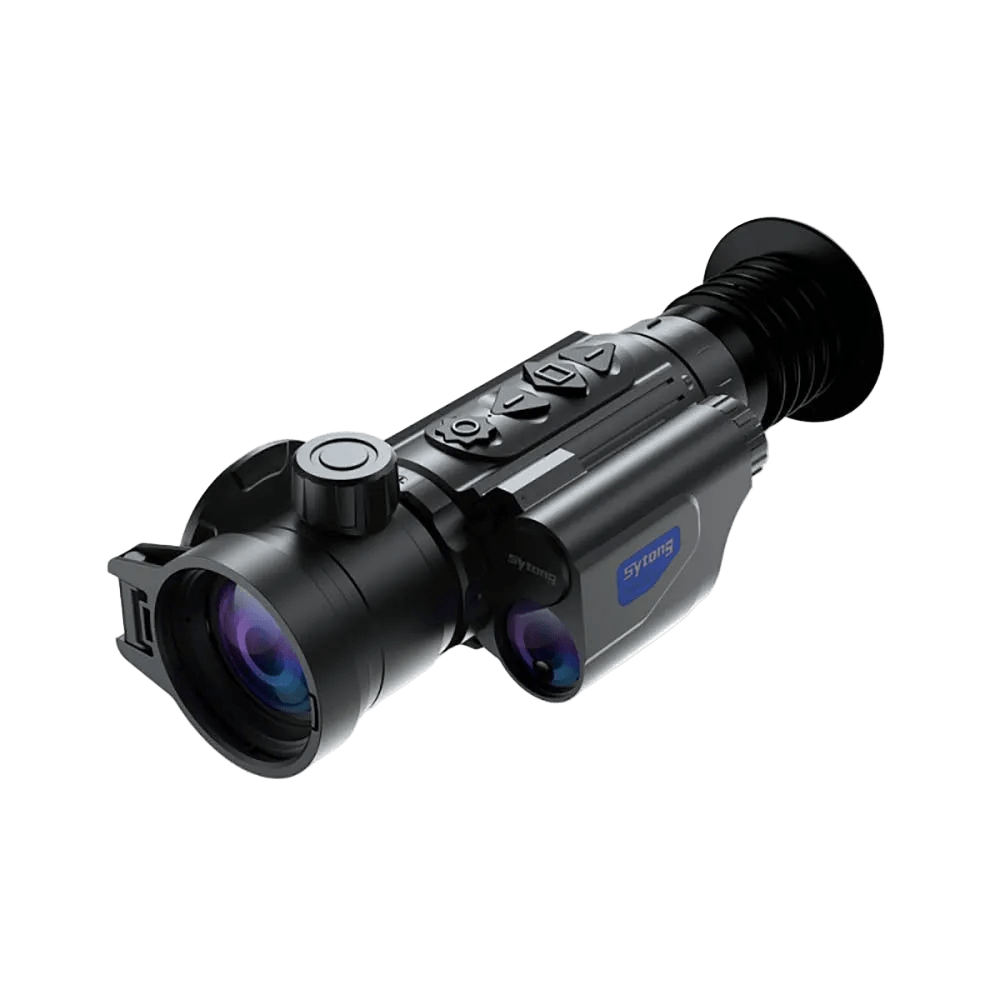

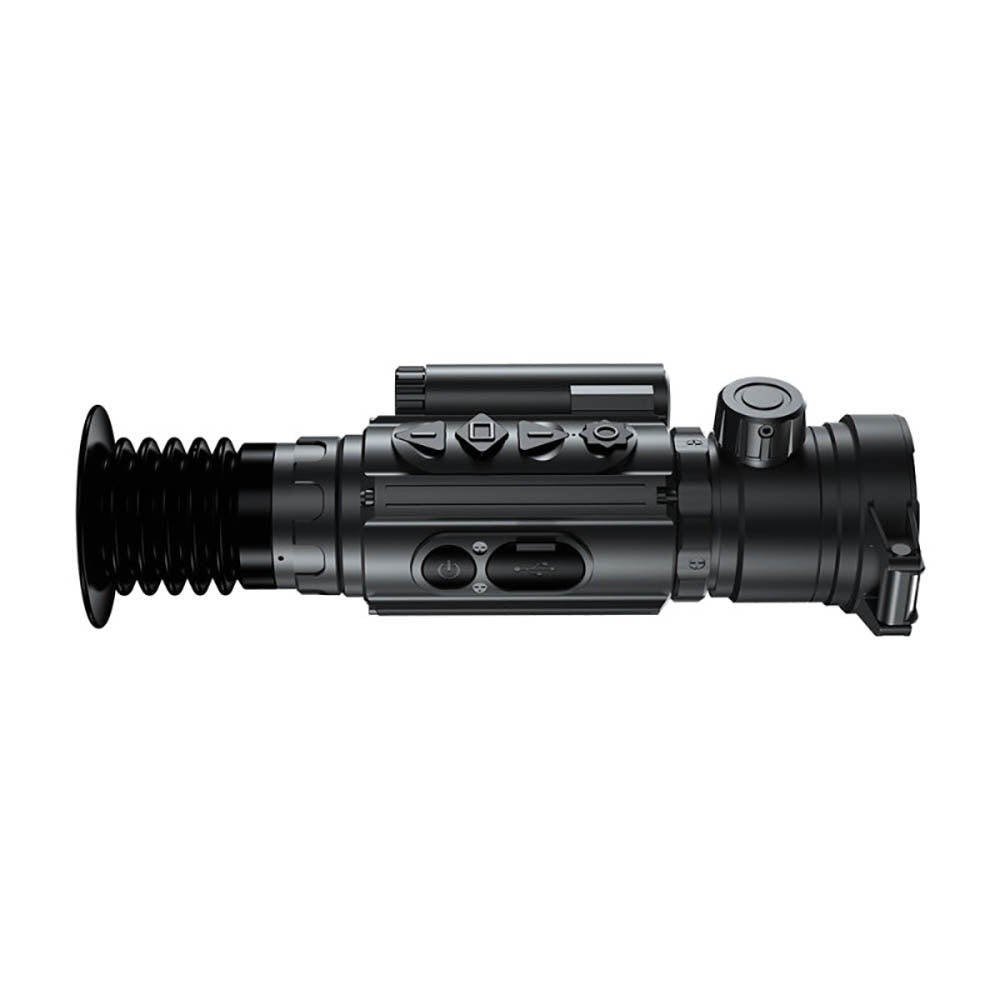

The Sytong XM06-50LRF is a feature-packed thermal imaging riflescope built for long-range detection and practical field use. It combines Sytong’s 12µm, 640×512 sensor with NETD <18mK sensitivity for excellent contrast, plus an integrated 1200m laser rangefinder and auto ballistic calculation. With PIP, WiFi, and video recording, it’s designed for hunters and night-time observers who want fast ranging, clear imaging, and easy capture in one unit.
Key Features
- 12µm 640×512 Thermal Sensor with NETD <18mK for strong detail and separation
- 50mm / F1.0 Objective Lens for long-range performance
- Detection Distance: up to 2500m (1.7m × 0.5m target)
- 1200m Laser Rangefinder (±1m accuracy listed) for fast ranging in the field
- Auto Ballistic Calculation for range-based hold support
- 2.5× Base Magnification with 1× / 2× / 4× / 8× digital zoom
- 0.39" AMOLED Display (1024×768) with multiple palettes
- PIP (Picture-in-Picture) for target zoom while keeping wider situational view
- WiFi + Video Recording for sharing and saving hunts/observations
- Built-in 32GB Storage with .mp4 / .jpg recording (1024×768)
- Rugged Rated: IP66, -20°C to +50°C, 10,000J recoil handling
- Power: single 18650 (3200mAh), up to 5 hours at 22°C + USB external power (5V)
Specifications
- Model: Sytong XM06-50LRF
- Sensor Type: Uncooled
- Thermal Resolution: 640×512
- Pixel Pitch: 12µm
- Frame Rate: 50Hz
- NETD: <18mK
- Objective Lens: 50mm / F1.0
- Magnification: 2.5×
- Digital Zoom: 1× / 2× / 4× / 8×
- Eye Relief: 50mm
- Dioptre Adjustment: +5 / -5D
- Focus Range: 5m – ∞
- Field of View: 8.8° × 6.6°
- Detection Distance: 2500m (1.7m × 0.5m target)
- Laser Rangefinder: 1200m (905nm, ±1m accuracy listed)
- Display: 0.39" AMOLED, 1024×768
- Palettes: White Hot, Black Hot, Red Hot, Fusion, Sky
- WiFi: 2.4GHz, 802.11 b/g, up to 15m line-of-sight
- Recording Resolution: 1024×768
- Formats: .mp4 / .jpg
- Storage: Built-in 32GB
- Battery: 1× 18650 (3200mAh)
- Runtime: up to 5 hours (22°C)
- External Power: 5V USB
- Max Recoil Handling: 10,000J
- Operating Temperature: -20°C to +50°C
- Waterproof Rating: IP66
- Dimensions: 224 × 92 × 69mm
- Weight: 723g
- Functions: Auto Ballistic Calculation, PIP, WiFi, Video Record
