Description
Compact Thermal Scope with Laser Rangefinder, Recording and WiFi

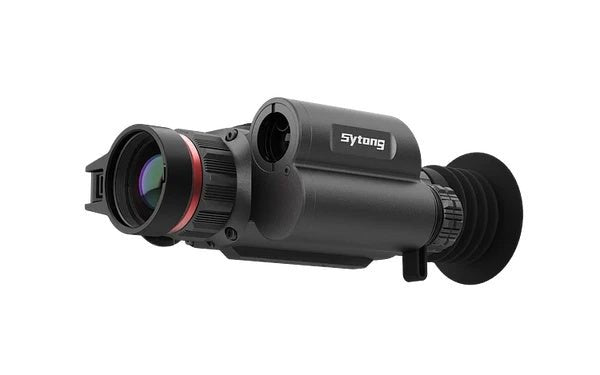

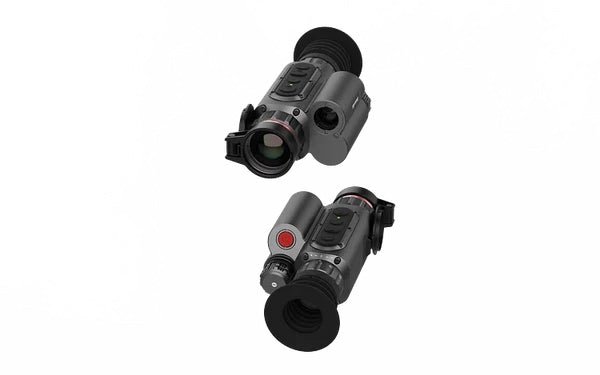

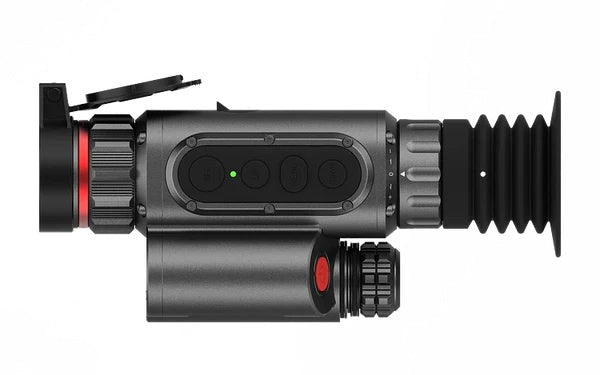

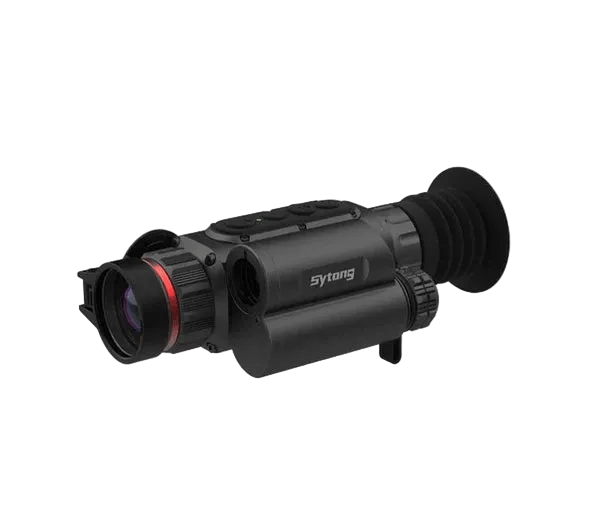

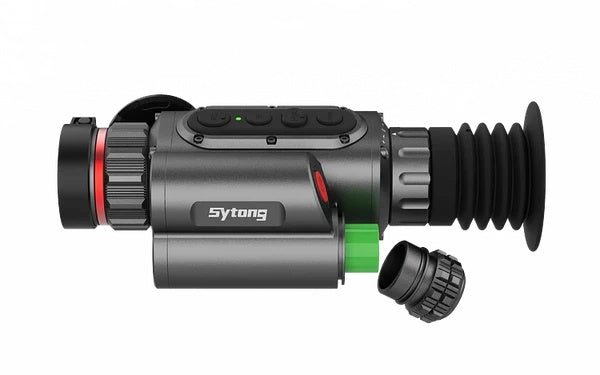

The Sytong LM02-25LRF is a lightweight thermal imaging scope built for close to mid-range use, offering practical thermal performance in a compact, affordable package. With a 256x192 thermal sensor, 25mm objective lens, integrated laser rangefinder, and WiFi plus video recording, it’s a strong option for users wanting a simple, capable thermal optic without excess bulk.
Note: This product is made to order with an estimated delivery time of 3 to 4 weeks.
Key Features

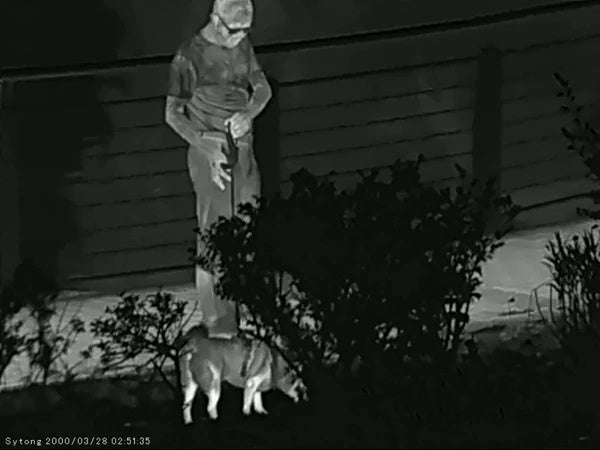

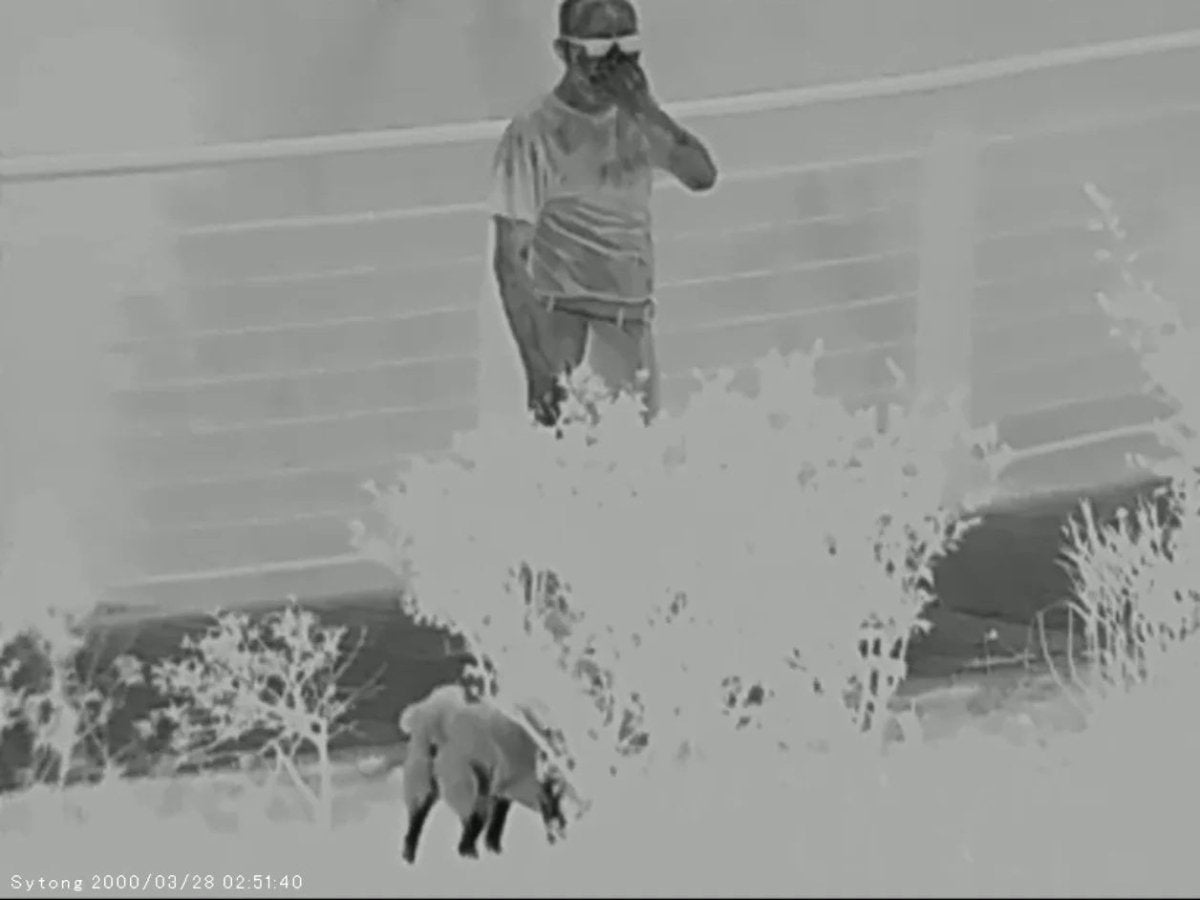

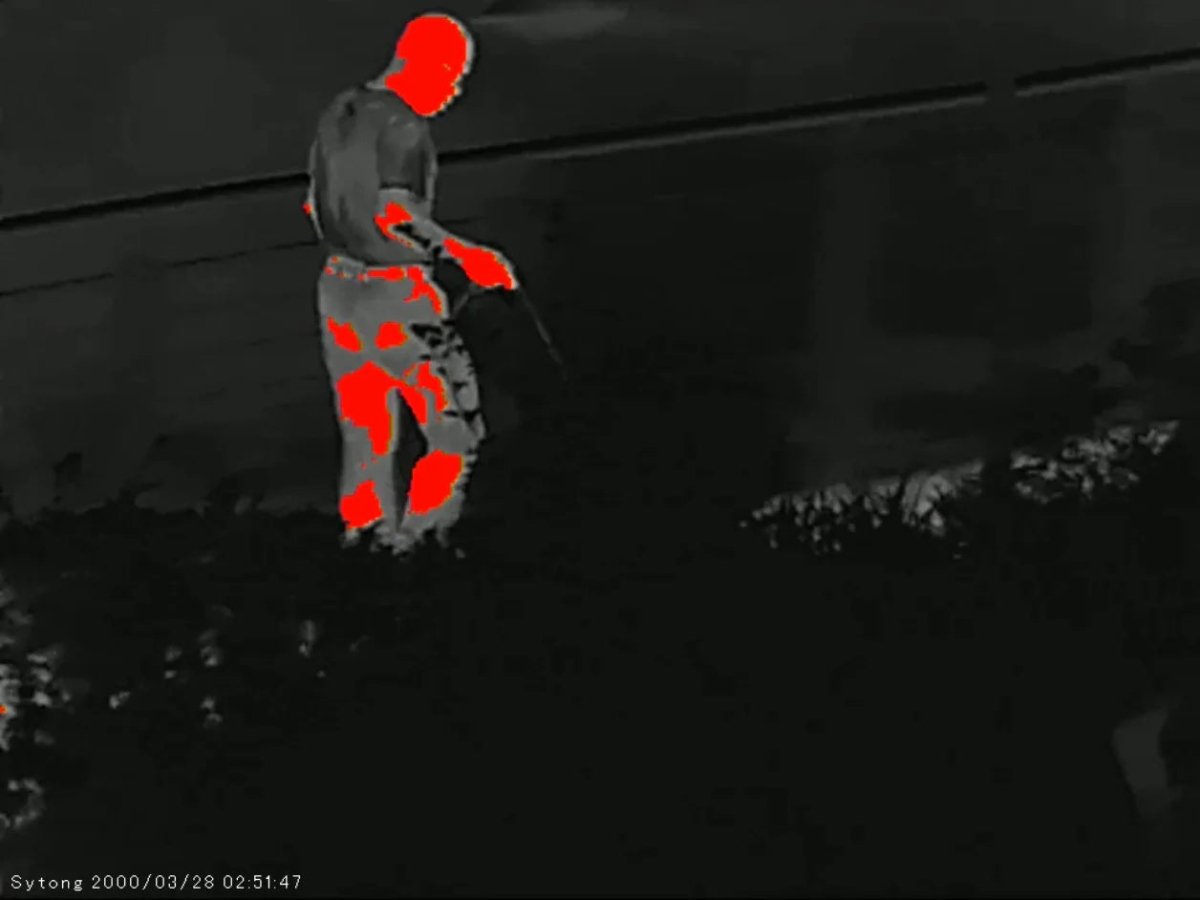

- 256x192 Thermal Sensor: Clear thermal imaging for practical target detection and observation
- 25mm Objective Lens: Compact setup suited to close and mid-range use
- Detection Range up to 1300m: Effective thermal performance for its class
- Integrated Laser Rangefinder: Added distance awareness for more informed shooting decisions
- NETD ≤30mK: Good thermal sensitivity for reliable image contrast
- 3.56x Base Magnification: Useful starting magnification for field use
- Up to 8x Digital Zoom: Extra flexibility for target identification
- 1024x768 OLED Display: Sharp, bright image presentation
- Video Recording and Photo Capture: Save footage and still images directly to Micro SD card
- WiFi Connectivity: Connect to a smartphone for viewing and file transfer
- Up to 8 Hours Battery Life: Powered by a single 18650 battery
- Compact and Lightweight: Only 465g without battery or mount
- IP66 Rated: Built for outdoor use with protection against dust and water
- Shock Resistant: Rated to 1000G for dependable field durability

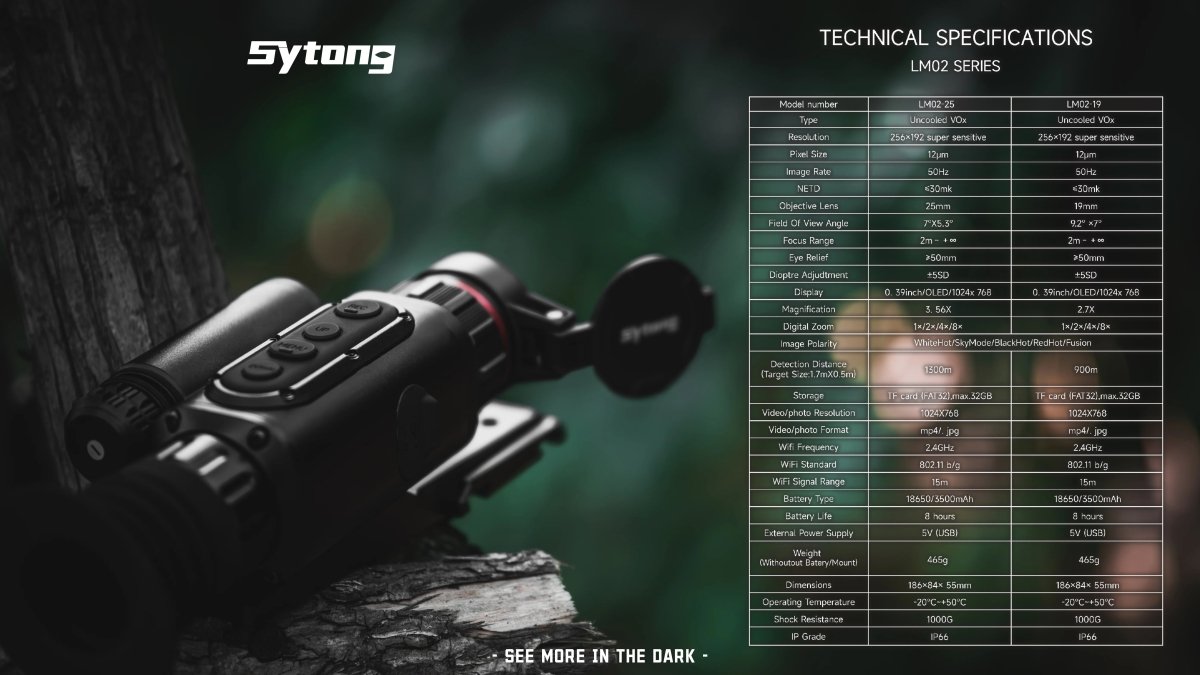

Technical Specifications
- Model: LM02-25LRF
- Detector Type: Uncooled VOx
- Sensor Resolution: 256 x 192
- Pixel Pitch: 12µm
- NETD: ≤30mK
- Frame Rate: 50Hz
- Objective Lens: 25mm
- Field of View: 7.0° x 5.3°
- Magnification: 3.56x
- Digital Zoom: 1x / 2x / 4x / 8x
- Minimum Focus Distance: 2m to infinity
- Eye Relief: ≥50mm
- Diopter Adjustment: ±5D
- Detection Range: 1300m
- Display: 0.39" OLED
- Display Resolution: 1024 x 768
- Storage: Micro SD / TF card support up to 32GB
- Media Format: MP4 / JPG
- WiFi: 2.4GHz
- Battery: 1 x 18650 Li-ion (3500mAh)
- Battery Life: Up to 8 hours
- External Power: 5V via USB
- Operating Temperature: -20°C to +50°C
- Shock Resistance: 1000G
- Protection Rating: IP66
- Dimensions: 186 x 84 x 55mm
- Weight: 465g
Perfect For
- New Thermal Users: Straightforward, affordable entry into thermal optics
- Close to Mid-Range Shooting: Compact 25mm setup with practical detection capability
- Lightweight Rifle Builds: Minimal added bulk for easier handling
- Hunters Wanting Core Thermal Features: LRF, recording, WiFi, and solid runtime in one unit
Why Choose the Sytong LM02-25LRF?
The LM02-25LRF delivers the essential features most users want in a thermal scope—compact size, practical detection range, laser ranging, recording, and WiFi—at a more accessible level. It’s a smart choice for shooters wanting reliable thermal performance in a lightweight, field-ready optic.
Upgrade your setup with the Sytong LM02-25LRF Thermal Imaging Scope today.
Note: This product is made to order with an estimated delivery time of 3 to 4 weeks.
