Description
256×192 / NETD <18mK, 50Hz, 900m Detection (IP66 / 1000G)

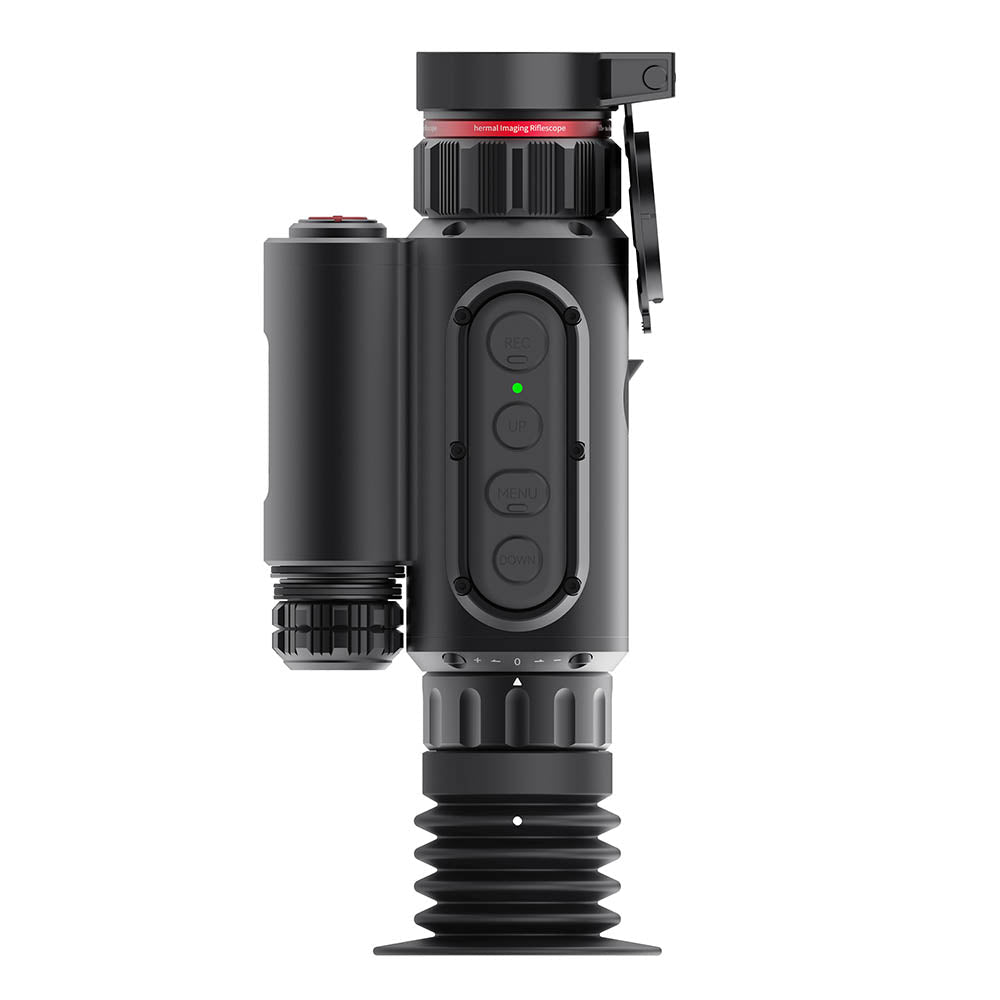

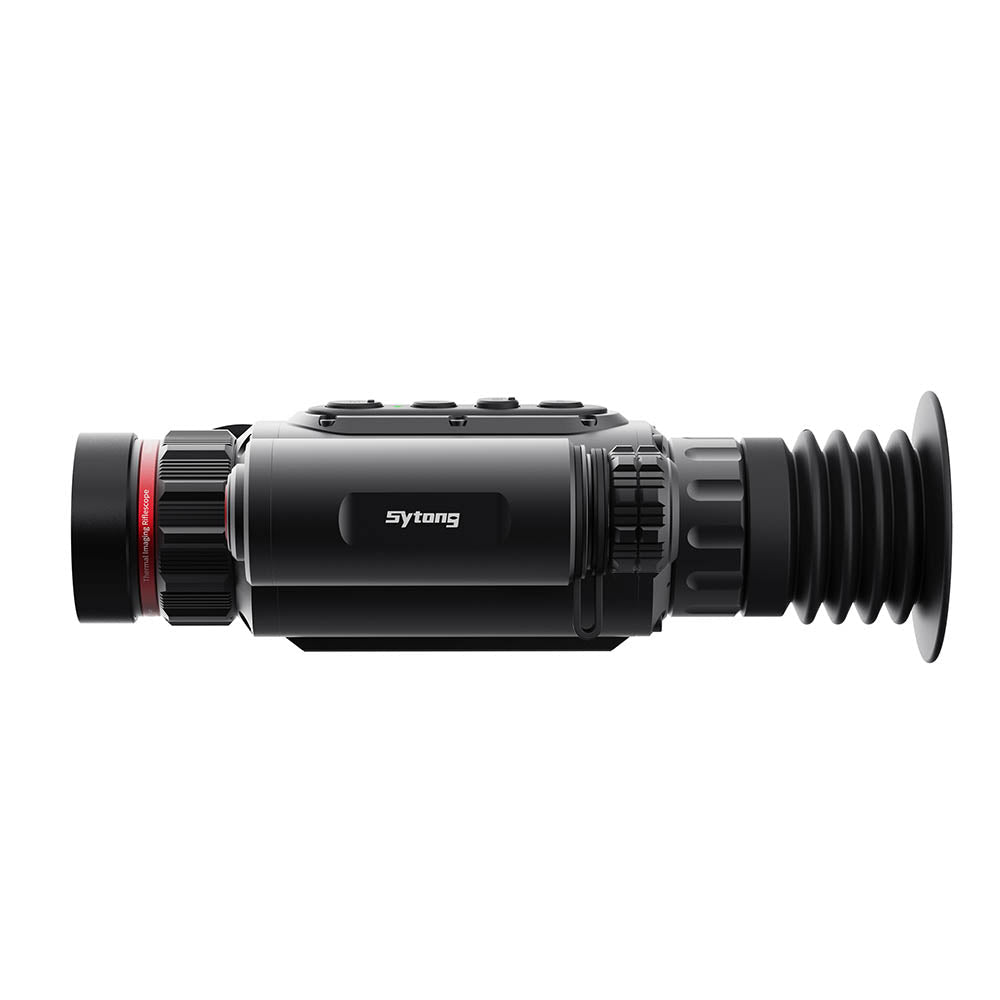

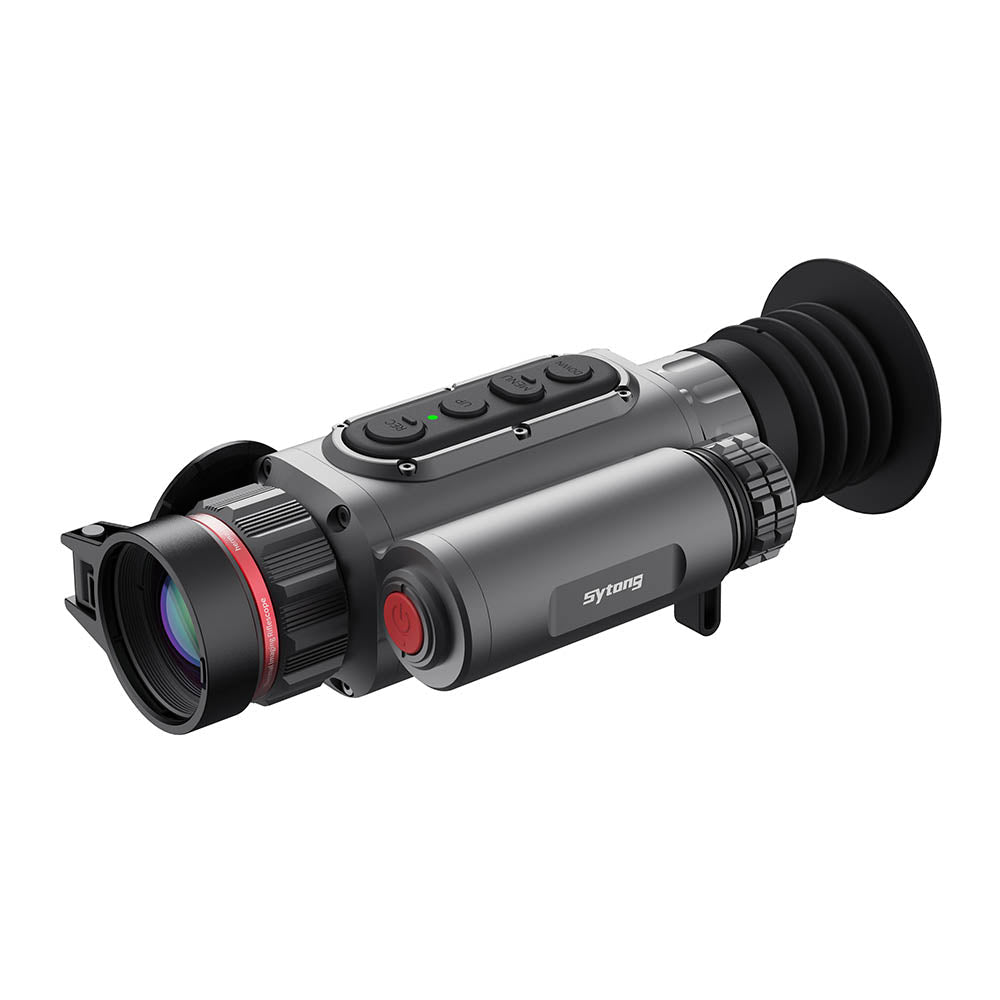

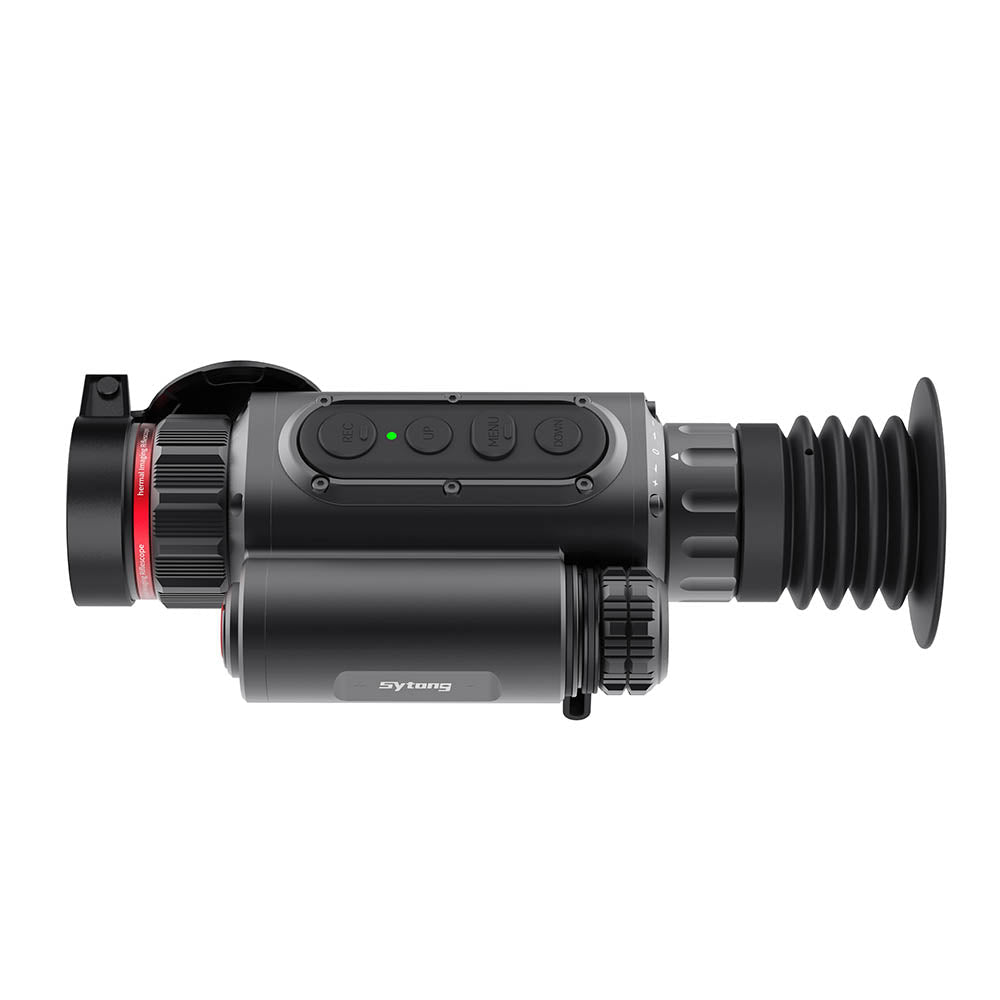

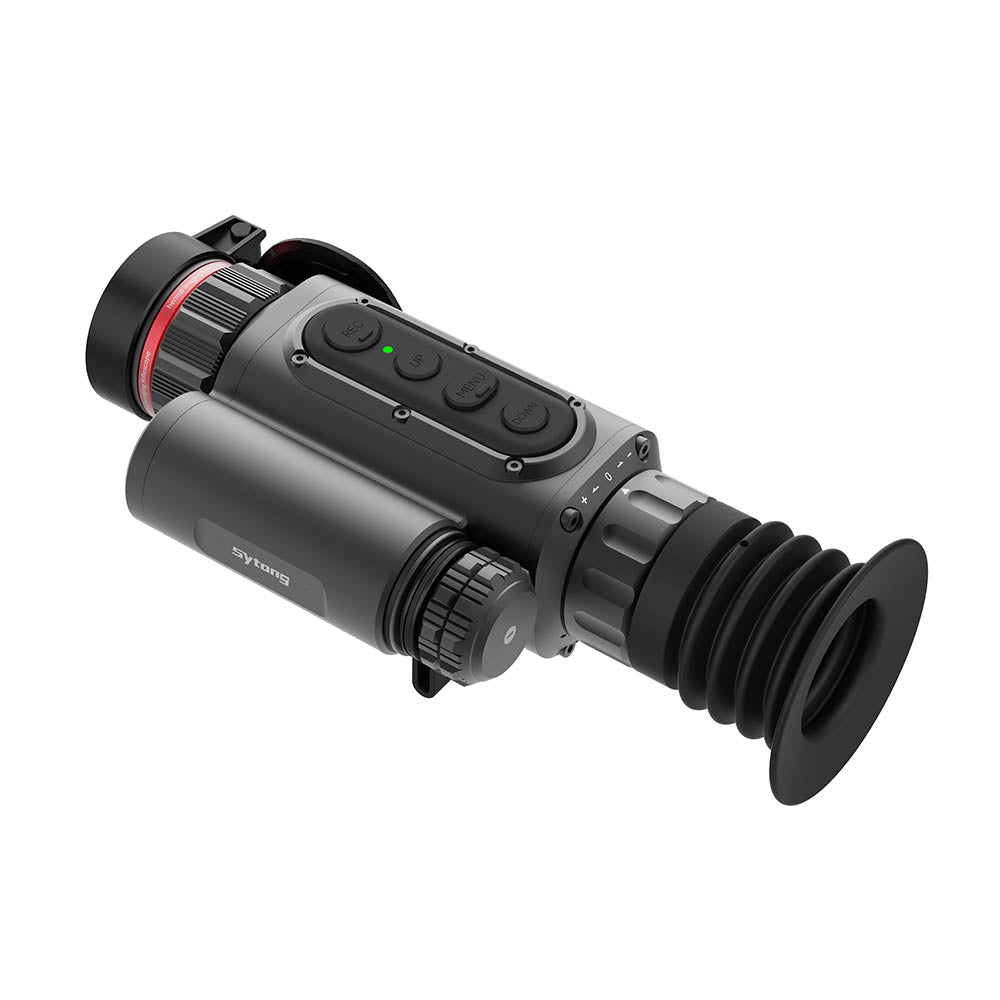

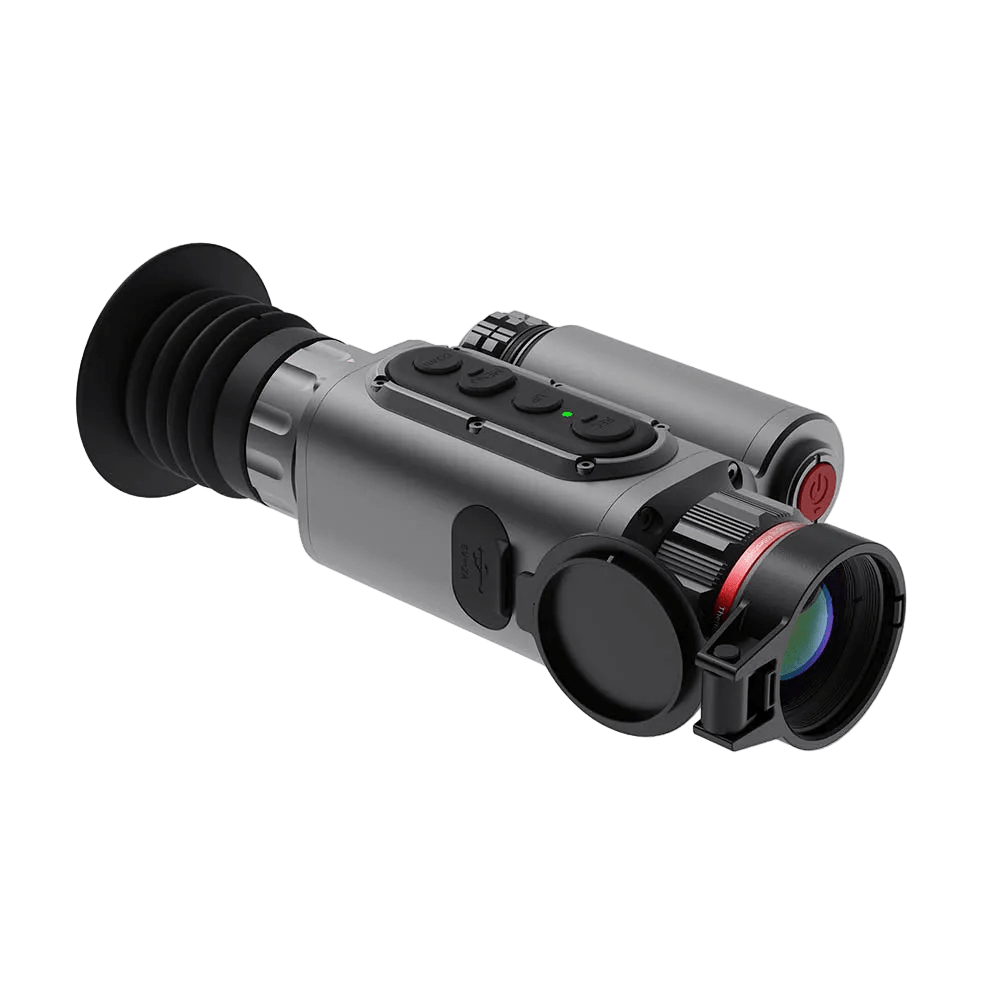

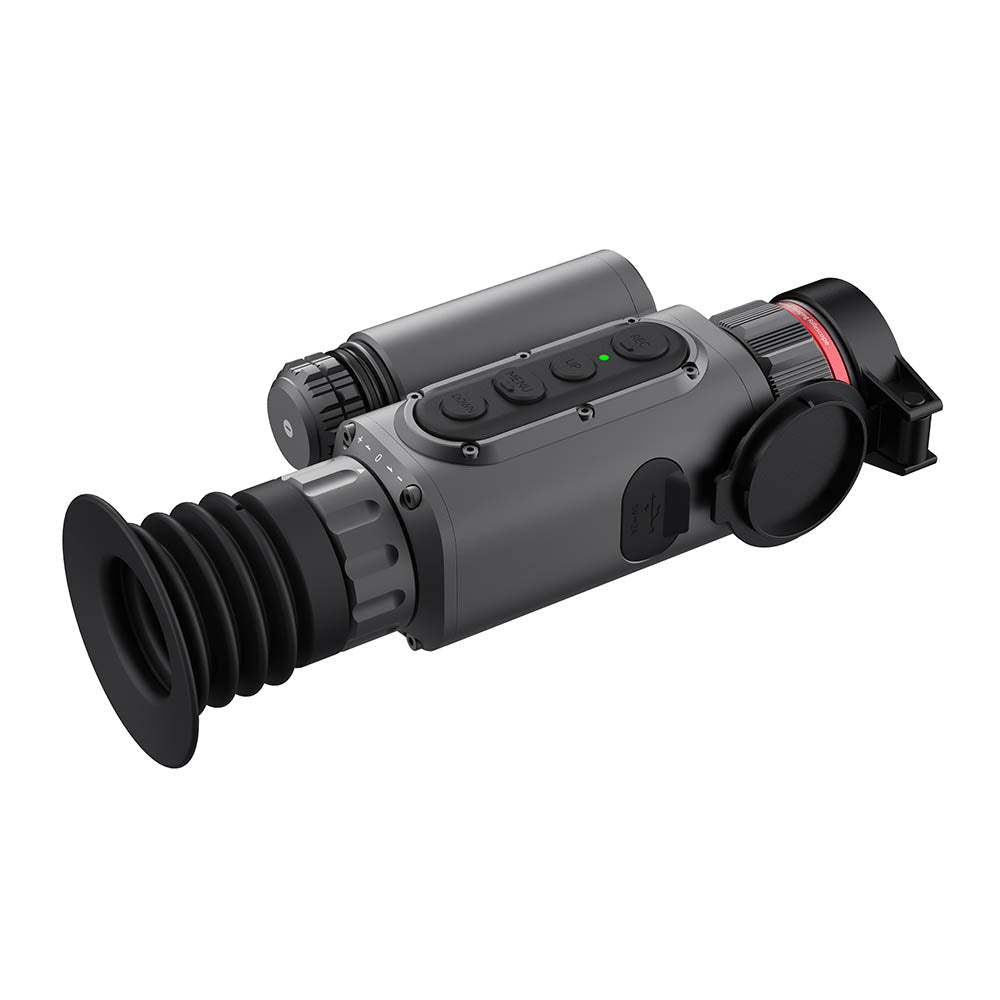

The Sytong LM02-19LRF is a compact thermal scope built for fast scanning and practical night use. It combines a 256×192 uncooled VOx sensor with NETD <18mK sensitivity and a wide-view 19mm objective, plus laser rangefinding, WiFi, and video recording. With up to 900m detection, IP66 protection, and 1000G shock resistance, it’s a lightweight option for hunting, pest control, and general night observation.
Key Features
- 256×192 Thermal Sensor (uncooled VOx) with NETD <18mK for strong contrast
- 19mm Objective Lens for a wider field of view and quicker target acquisition
- Detection Distance: up to 900m
- Laser Rangefinder for real-world ranging support (range not specified in your notes)
- 2.7× Base Magnification with 1× / 2× / 4× / 8× digital zoom
- 0.39" OLED Display (1024×768) for a sharp, clear image
- Palettes/Modes: White Hot, Black Hot, Red Hot, Fusion, Sky Mode
- Video + Photo Recording: 1024×768, .mp4 / .jpg
- TF Card Storage: FAT32, up to 32GB
- WiFi 2.4GHz (802.11 b/g) with up to 15m signal range
- Long Runtime: 18650 3500mAh, up to 8 hours, plus USB external power (5V)
- Rugged Rated: IP66, -20°C to +50°C, 1000G shock resistance
- Lightweight: 465g (without battery/mount)
Specifications
- Model: Sytong LM02-19LRF
- Sensor Type: Uncooled VOx
- Thermal Resolution: 256×192
- Pixel Pitch: 12µm
- Frame Rate: 50Hz
- NETD: <18mK
- Objective Lens: 19mm
- Field of View: 9.2° × 7°
- Focus Range: 2m – ∞
- Eye Relief: 50mm
- Dioptre Adjustment: +5 / -5D
- Magnification: 2.7×
- Digital Zoom: 1× / 2× / 4× / 8×
- Display: 0.39" OLED, 1024×768
- Detection Distance: 900m
- Storage: TF card (FAT32), up to 32GB
- Recording Resolution: 1024×768
- Formats: .mp4 / .jpg
- WiFi: 2.4GHz, 802.11 b/g, up to 15m
- Battery: 1× 18650 (3500mAh)
- Battery Life: up to 8 hours
- External Power: 5V USB
- Operating Temperature: -20°C to +50°C
- Shock Resistance: 1000G
- Waterproof Rating: IP66
- Dimensions: 186 × 84 × 55mm
- Weight: 465g (without battery/mount)
