Thermal Rifle Scope with Ballistic Calculator and Extended Battery Runtime

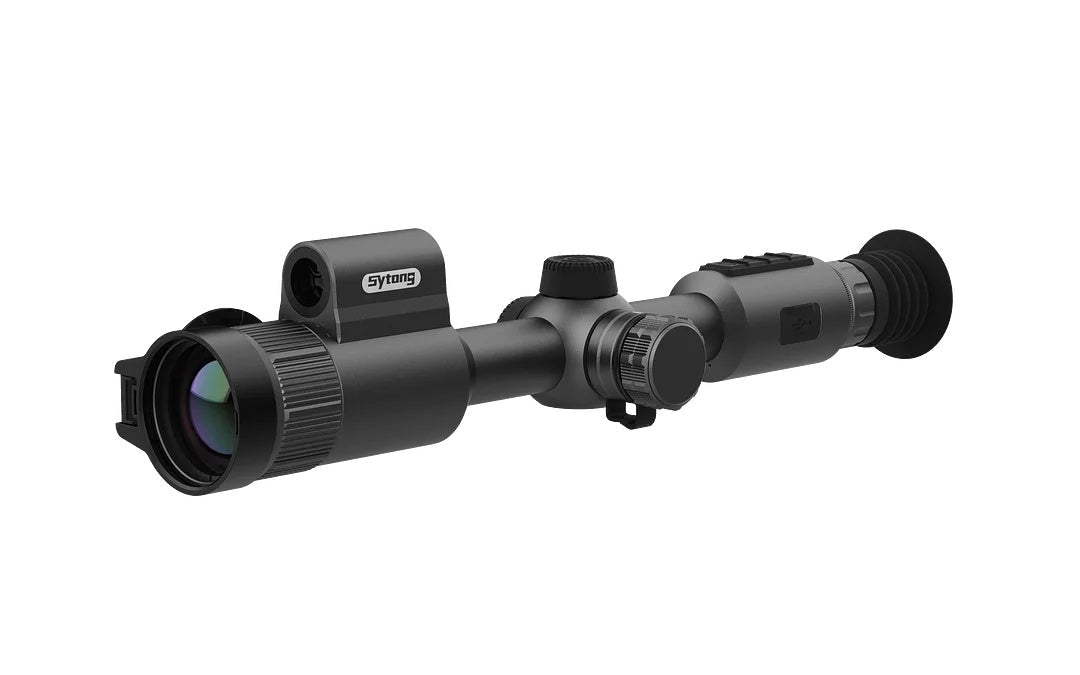

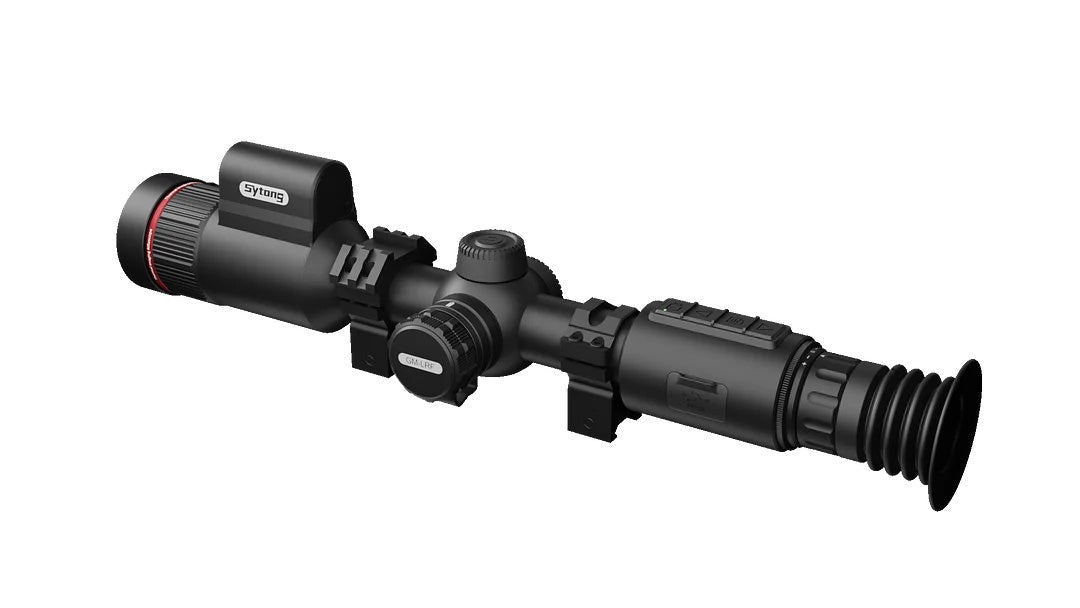

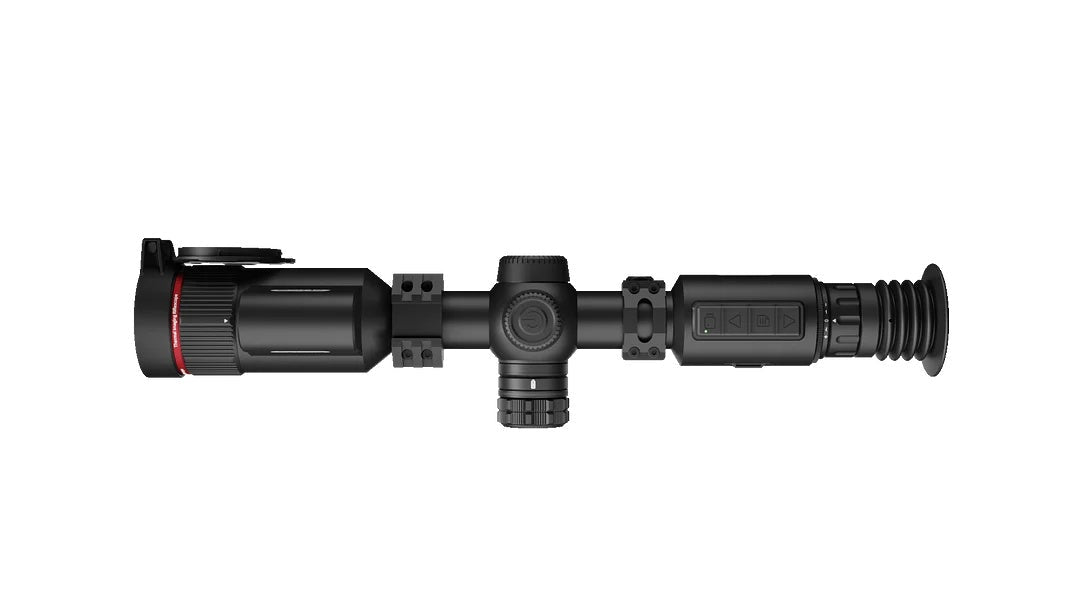

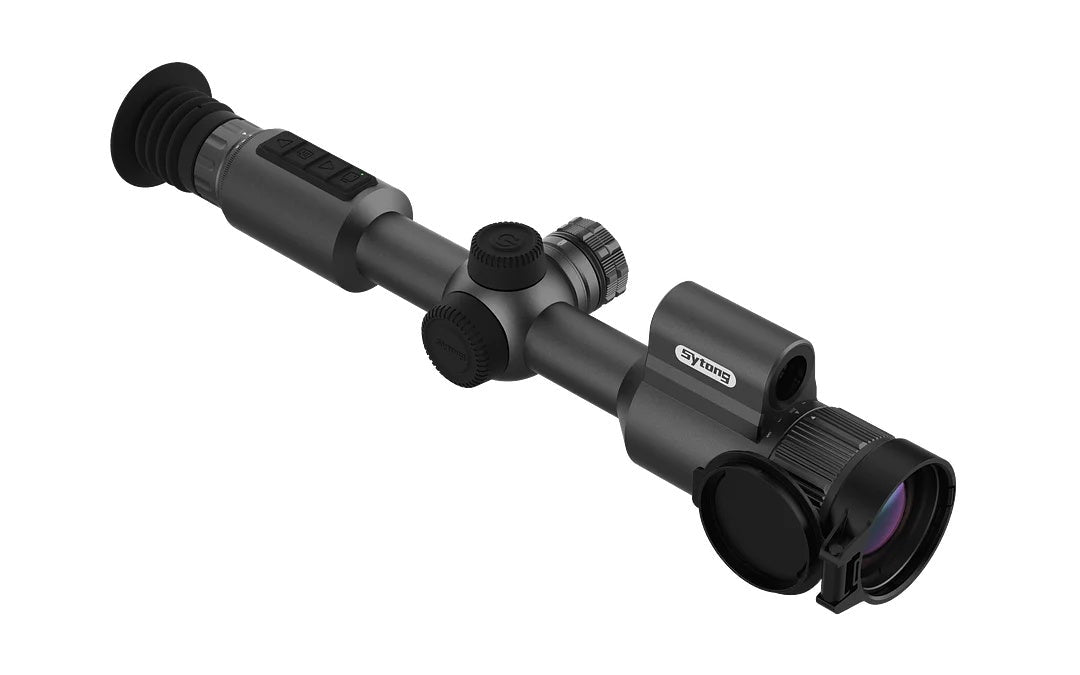

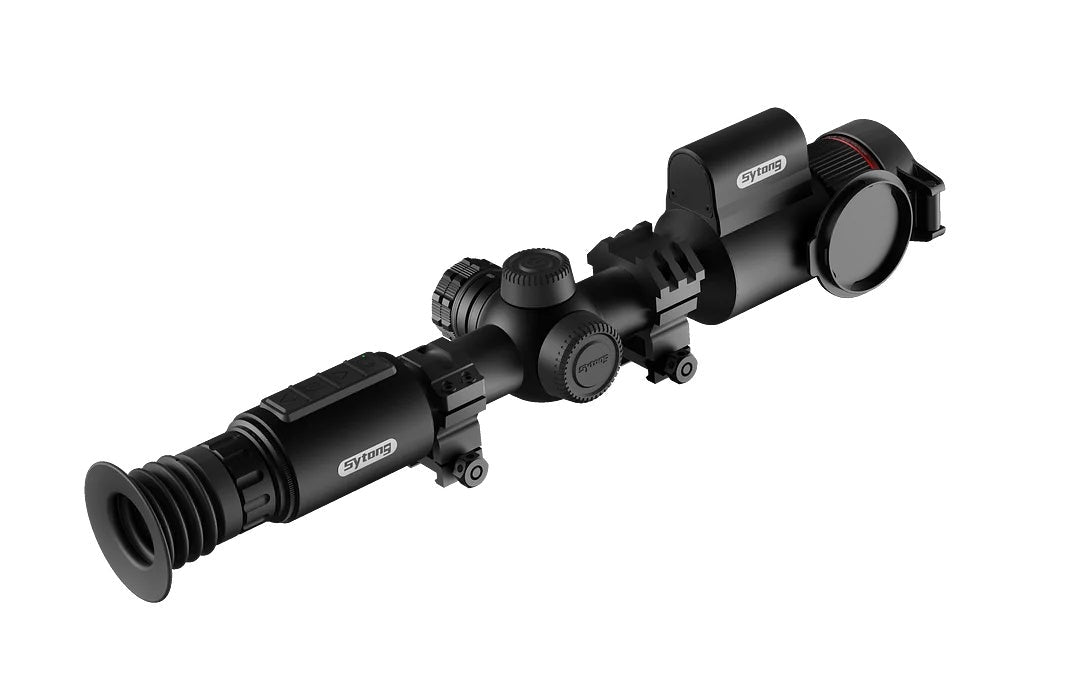

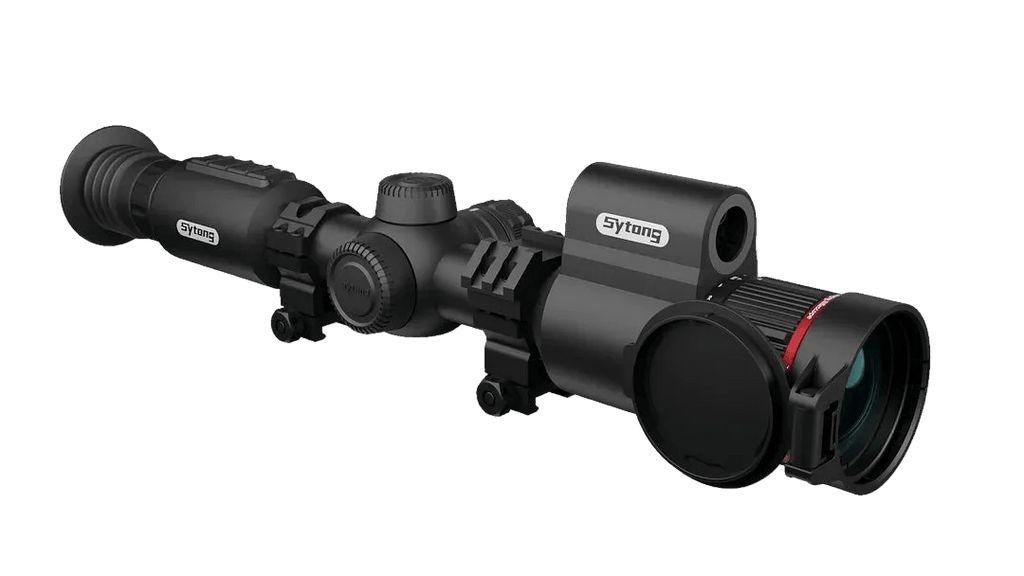

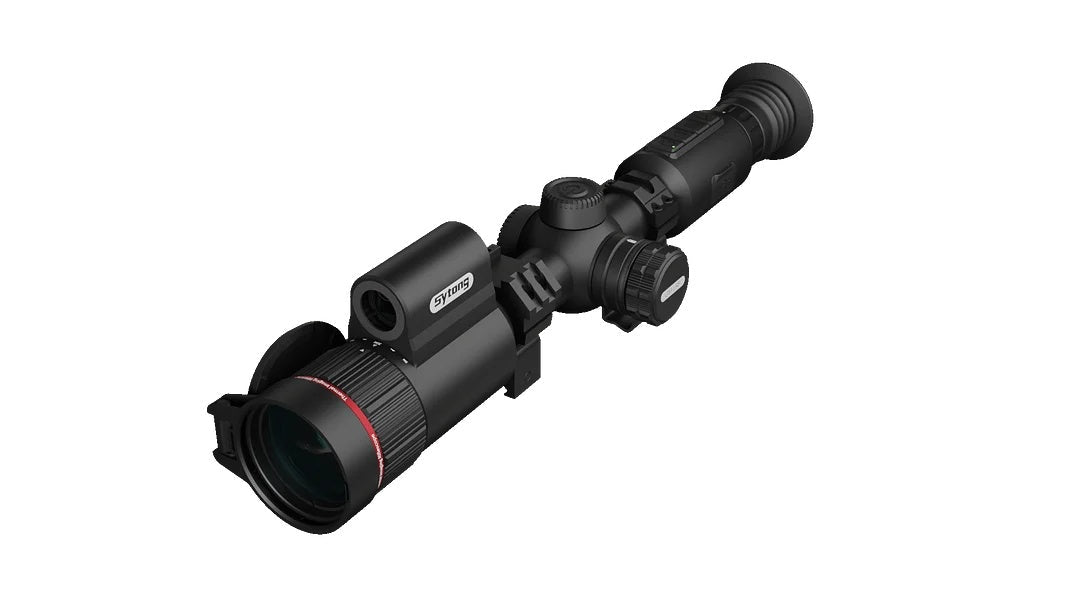

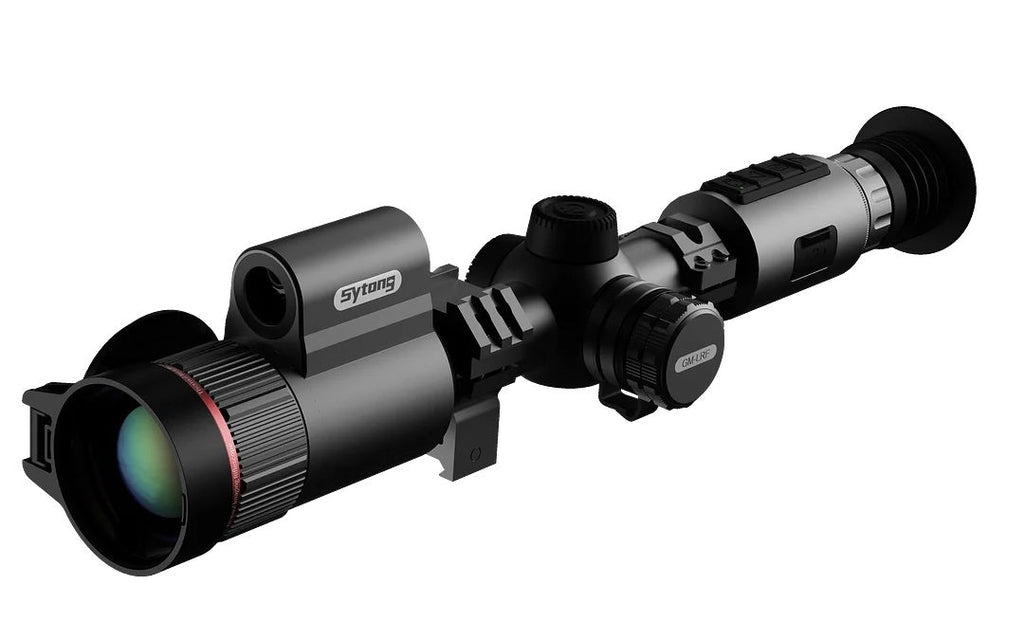

The Sytong GM06-50LRF is a high-performance thermal rifle scope built on a 30mm tube platform for users who want long-range thermal capability, integrated ranging, and ballistic support in a traditional scope-style format. Featuring a 640x512 12µm thermal sensor, 50mm F1.0 objective lens, laser rangefinder, and auto ballistic calculation, it delivers sharp thermal detail, dependable field performance, and extended runtime with dual battery compatibility.
Note: This product is made to order with an estimated delivery time of 3 to 4 weeks.
Key Features
- 640x512 Thermal Sensor: High-resolution thermal imaging for strong target detail and recognition
- 12µm Pixel Pitch: Sharp image performance with improved thermal definition
- NETD <18mK: High thermal sensitivity for clearer visibility in difficult conditions
- 50mm F1.0 Objective Lens: Strong long-range thermal performance with excellent image brightness
- Detection Range up to 2500m: Effective for long-range spotting and engagement
- Integrated Laser Rangefinder: Fast distance measurement for more informed shooting decisions
- Auto Ballistic Calculation: Displays a holdover point on the reticle when the rangefinder is active
- 2.5x Base Magnification: Practical starting magnification for field use
- Digital Zoom: 1x / 2x / 4x / 8x
- 1024x768 OLED Display: Bright, sharp thermal image with strong contrast
- Multiple Viewing Modes: White Hot, Sky Mode, Black Hot, Red Hot, Fusion
- 3D Gyroscope: Added smart functionality and orientation support
- Picture-in-Picture (PIP): Enlarged aiming area while maintaining full field awareness
- Built-In 32GB Storage: Record video and capture photos directly on the scope
- WiFi Connectivity: Stream, control, and transfer files via smartphone app

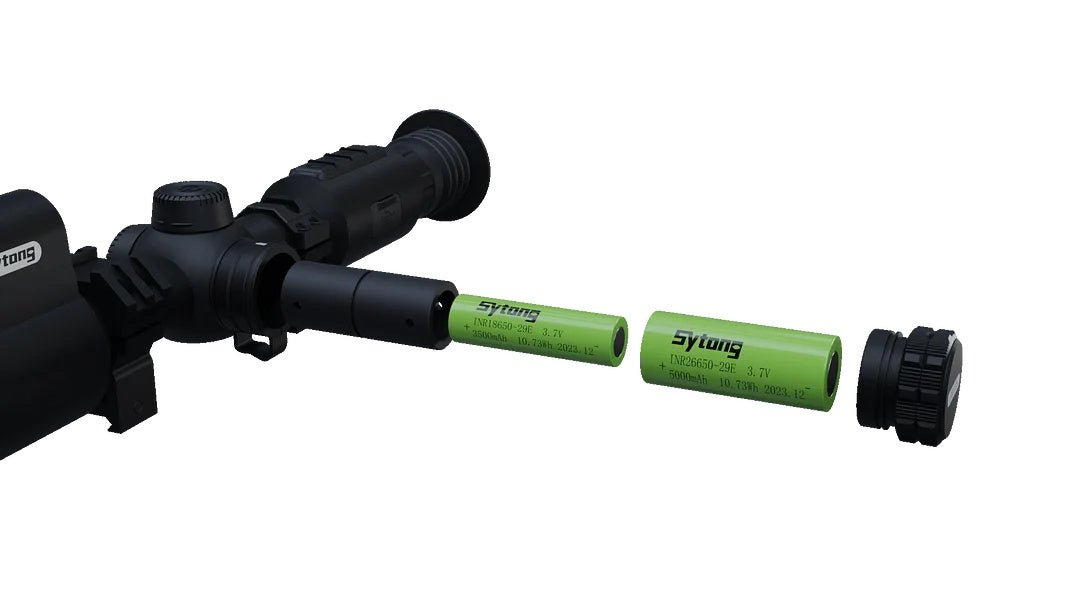

- Dual Battery Support: Compatible with 18650 and 26650 batteries
- Extended Runtime: Up to 9–11 hours of operation
- IP67 Waterproof Rating: Built for harsh weather and demanding outdoor use
Technical Specifications
- Model: GM06-50LRF
- Sensor Type: Uncooled
- Sensor Resolution: 640 x 512
- Pixel Size: 12µm
- NETD: <18mK
- Frame Rate: 50Hz

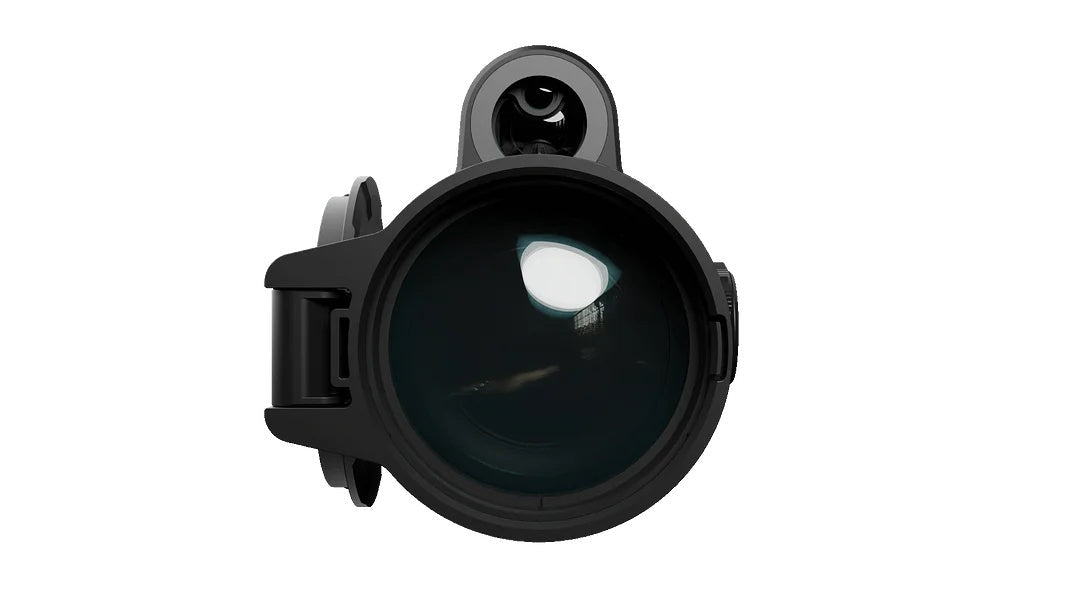

- Objective Lens: 50mm F1.0
- Field of View: 8.8° x 6.6°
- Magnification: 2.5x
- Digital Zoom: 1x / 2x / 4x / 8x
- Eye Relief: 50mm
- Dioptre Adjustment: +5 / -5D
- Focus Range: 5m to infinity
- Detection Range: 2500m
- Display: 0.39" OLED
- Display Resolution: 1024 x 768
- Viewing Modes: White Hot, Sky Mode, Black Hot, Red Hot, Fusion
- Laser Rangefinder Wavelength: 905nm
- Rangefinder Accuracy: ±1m
- Battery Compatibility: 18650 / 26650
- Operating Time: 9 to 11 hours
- Power Supply: 3V to 4.2V
- External Power Supply: 5V USB
- 3D Gyroscope: Yes
- Memory: Built-in 32GB
- Video / Photo Format: MP4 / JPG
- Video / Photo Resolution: 1024 x 768
- WiFi Frequency: 2.4GHz
- WiFi Range: 15m
- Waterproof Rating: IP67
- Operating Temperature: -20°C to +50°C
- Dimensions: 408 x 96 x 85mm
- Weight: 937g
- Max Recoil Handling: 1200g, 6ms
Perfect For

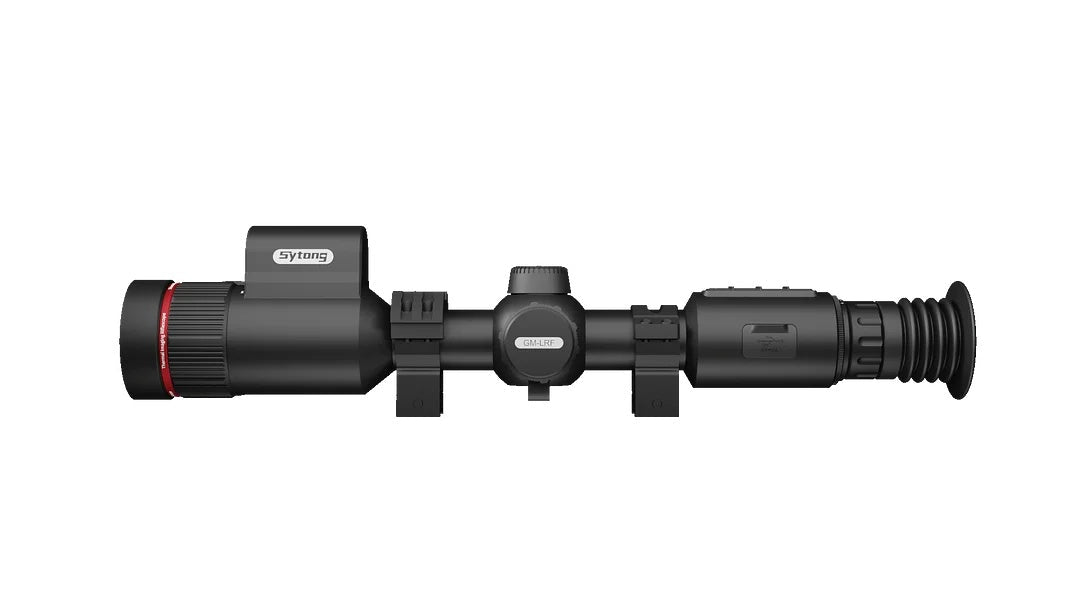

- Shooters Wanting a Traditional Scope Format: 30mm tube platform with thermal capability
- Long-Range Thermal Use: 50mm lens and 640 sensor support extended detection performance
- Users Wanting Ballistic Support: Integrated LRF and holdover calculation improve shot confidence
- Extended Field Sessions: Dual battery support and long runtime reduce downtime
Why Choose the Sytong GM06-50LRF?
The GM06-50LRF combines premium thermal imaging, integrated ranging, and ballistic support in a traditional rifle scope layout with extended battery life. It’s a strong option for users wanting serious long-range thermal performance with practical field-ready features and familiar scope handling.
