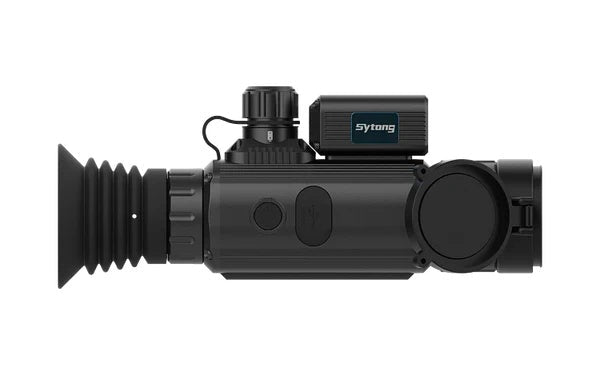

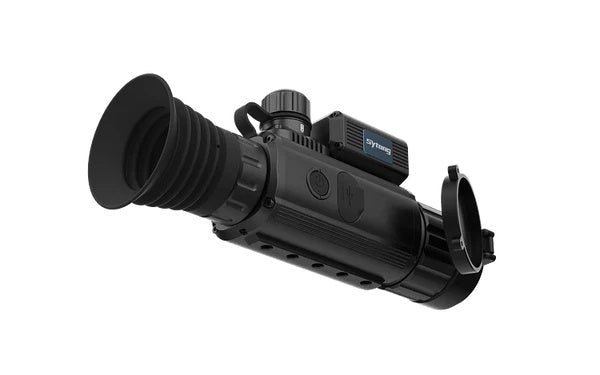

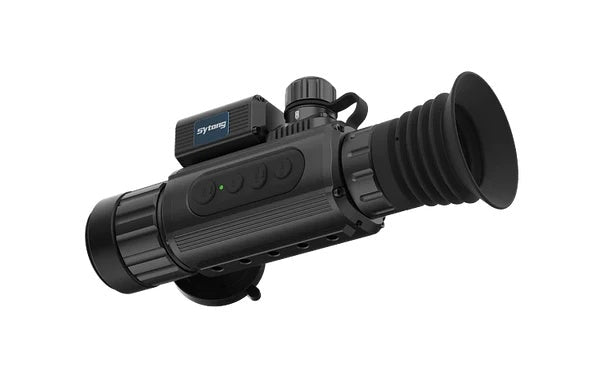

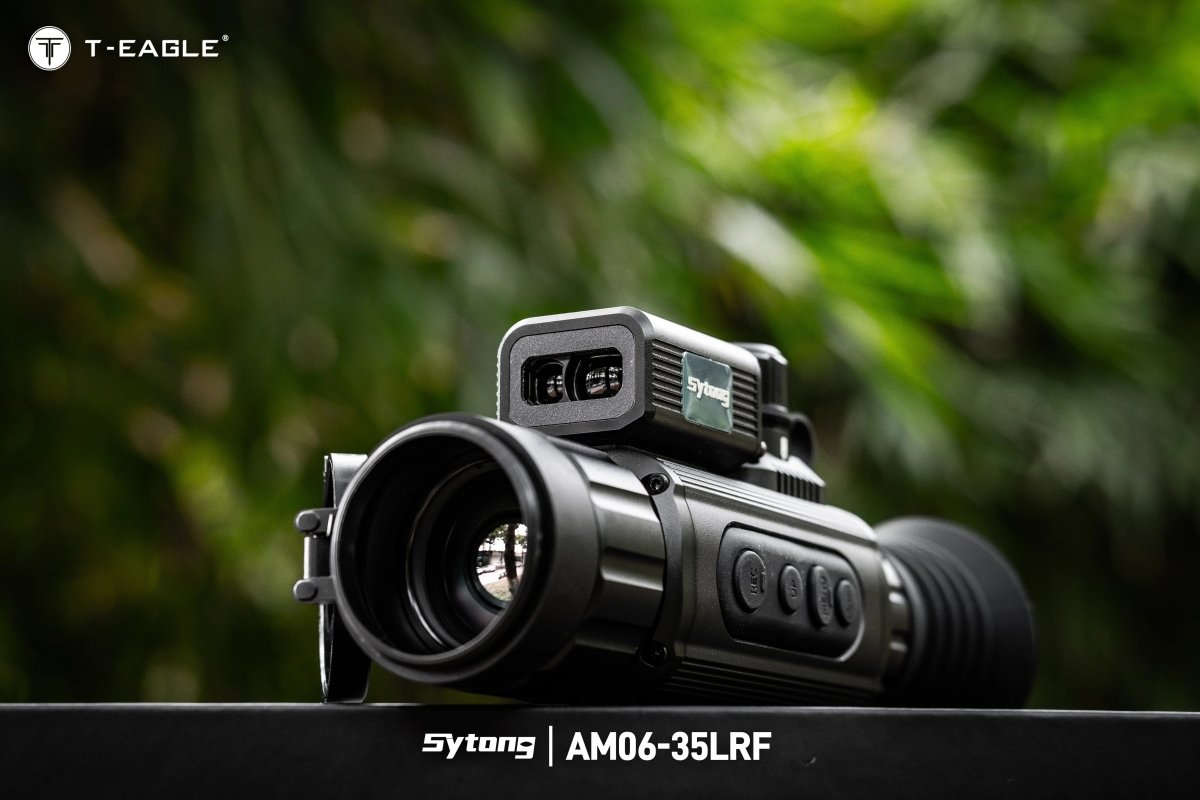

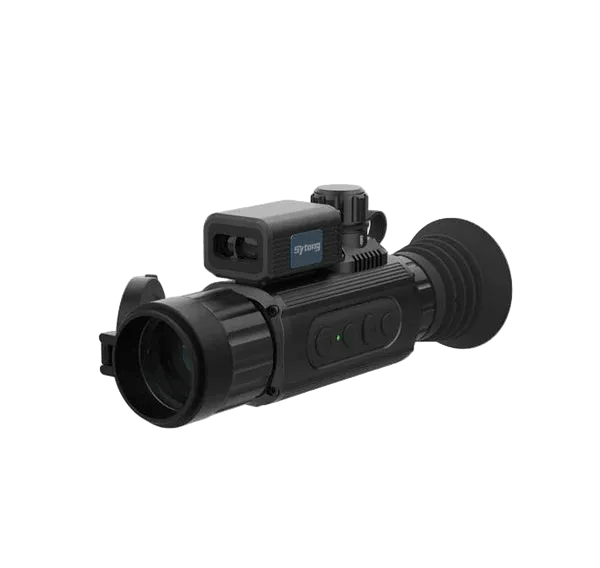

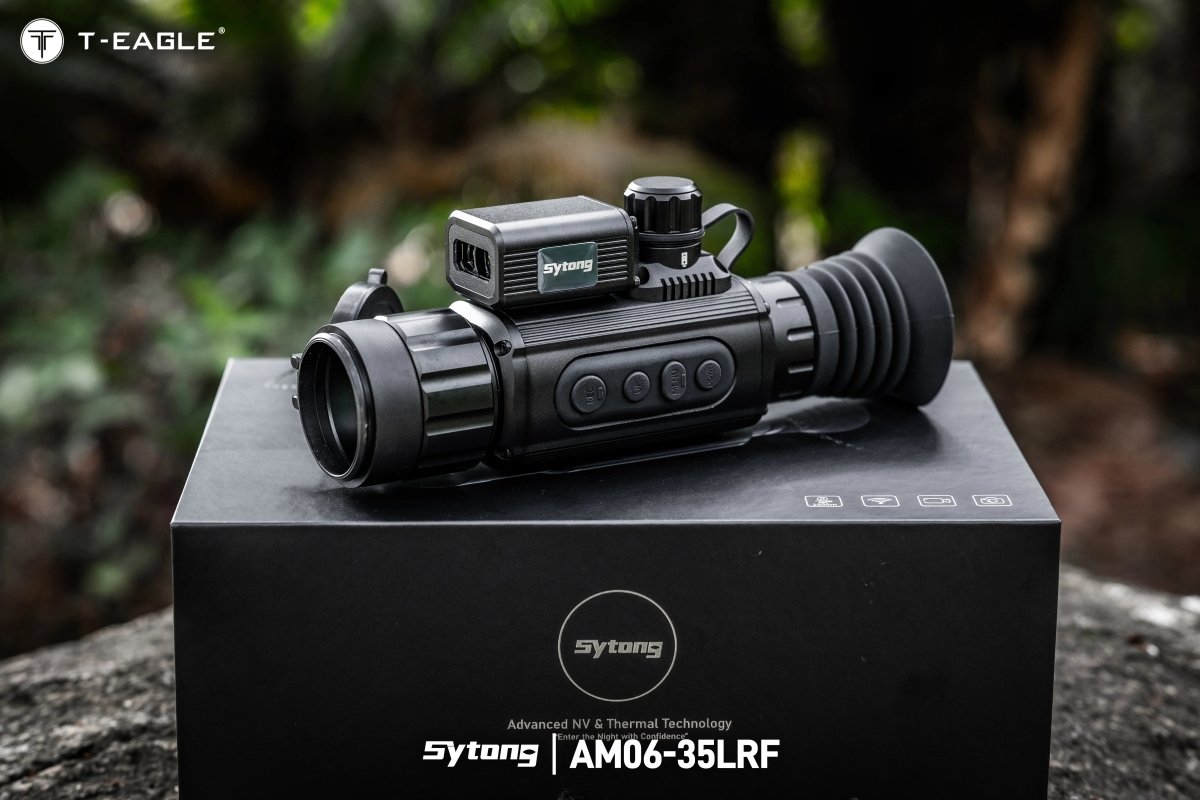

Wide-View Thermal Scope with 1000m Laser Rangefinder and Ballistic Support

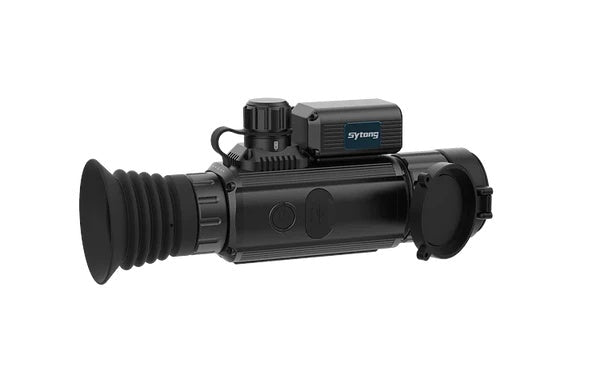

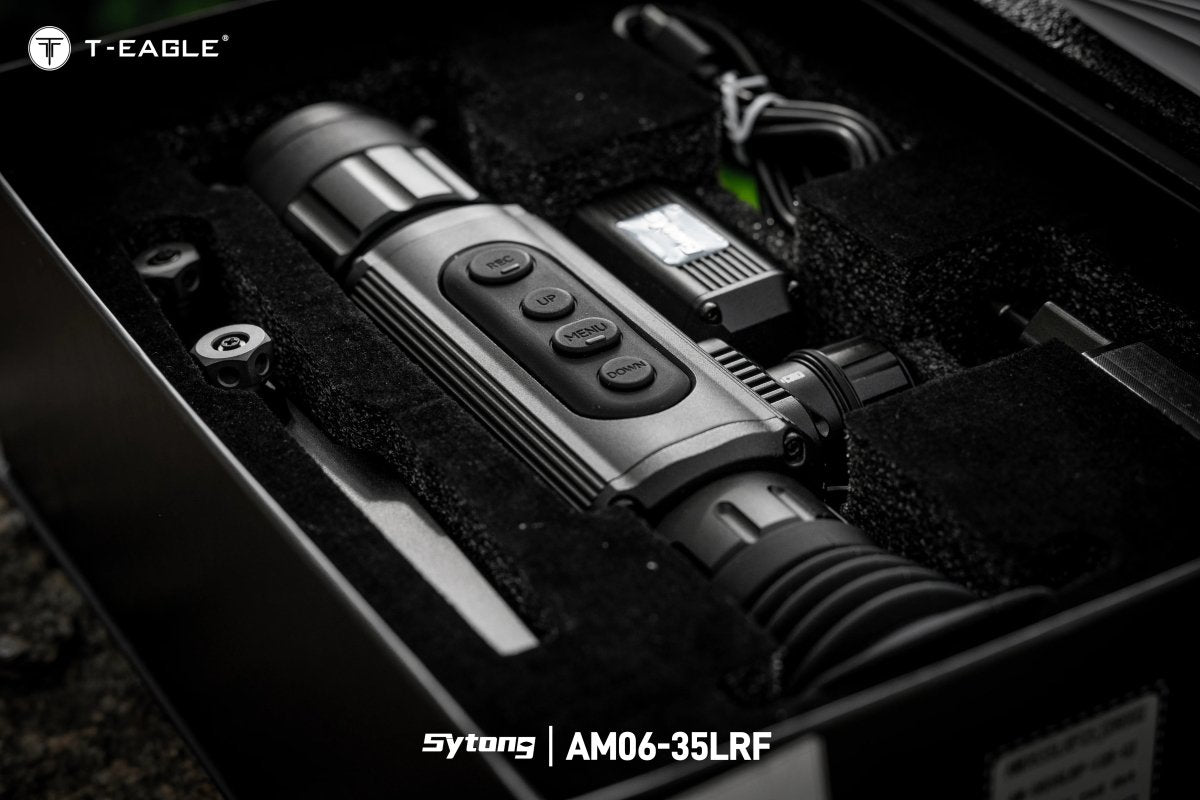

The Sytong AM06-35LRF is a high-resolution thermal imaging scope designed for fast target acquisition, wide-area scanning, and dependable long-range performance. Featuring a 640x512 12µm thermal sensor, 35mm F1.0 lens, 1000m laser rangefinder, and auto ballistic calculation, it delivers excellent image detail, strong field awareness, and rugged reliability in a lightweight package.
Note: This product is made to order with an estimated delivery time of 3 to 4 weeks.
Key Features

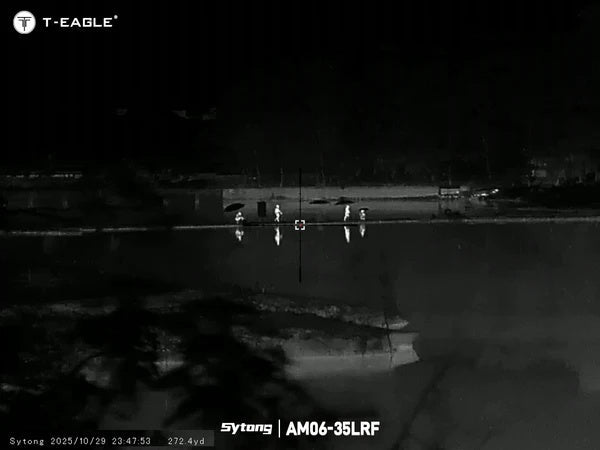

- 640x512 Thermal Sensor: High-resolution thermal imaging for strong target detail and recognition
- NETD ≤18mK: Excellent thermal sensitivity for clearer images in low-contrast conditions
- 35mm F1.0 Objective Lens: Wide field of view for faster scanning and easier target tracking
- Wide 12.5° x 10.0° Field of View: Ideal for close-to-mid-range engagements and dynamic environments
- Detection Range up to 2500m: Strong long-range thermal performance in a compact optic
- Integrated 1000m Laser Rangefinder: Accurate distance measurement with ±1m accuracy
- Auto Ballistic Calculation: Supports more precise long-range shot placement
- 1024x768 OLED Display: Sharp, bright, high-contrast viewing experience
- Picture-in-Picture (PIP): Enlarged aiming area while maintaining full target awareness
- 3D Gyroscope: Added orientation and shot-detection capability
- 32GB Internal Storage: Capture photos and record video directly on the device
- WiFi Connectivity: Stream, control, and transfer files through a smartphone connection
- Extreme Shock Resistance: Rated to withstand up to 10,000J
- IP67 Waterproof Rating: Built for harsh weather and demanding field use
- Lightweight Design: Approx. 610g for easier handling and reduced rifle weight

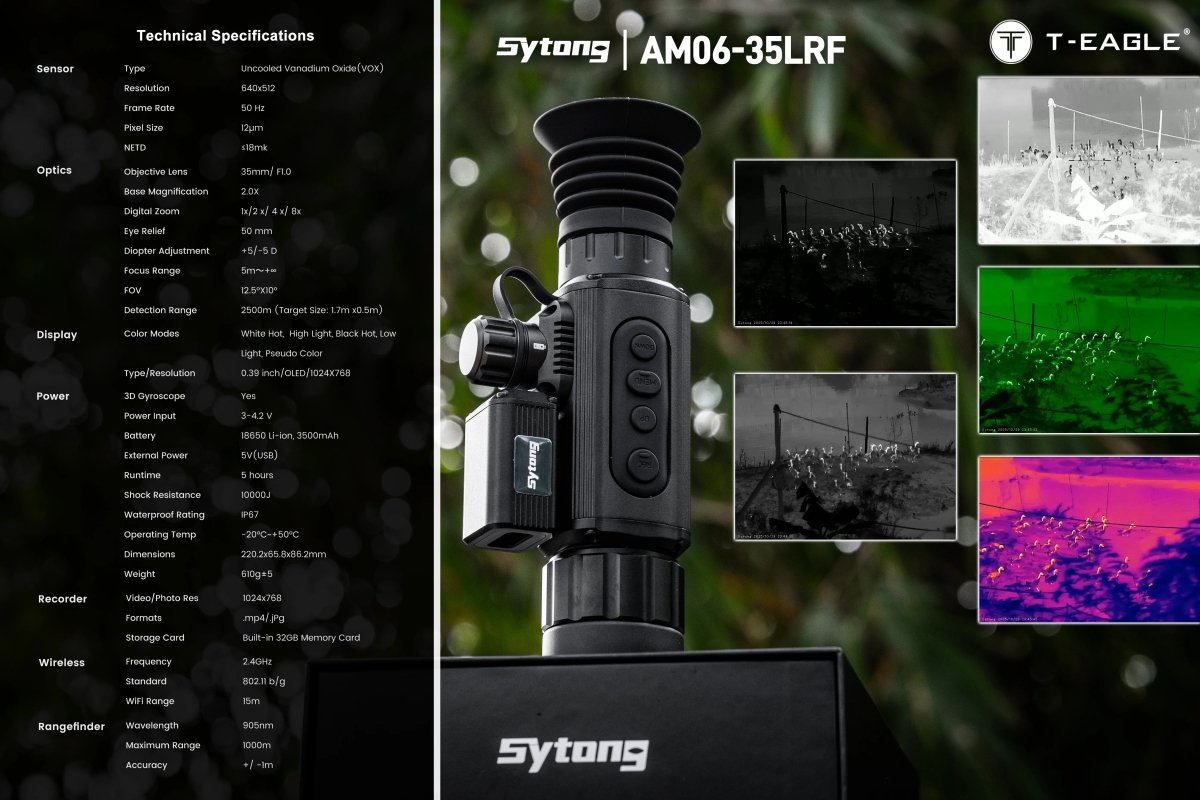

Technical Specifications
- Model: AM06-35LRF
- Detector Type: Uncooled VOx
- Sensor Resolution: 640 x 512
- Pixel Pitch: 12 µm
- NETD: ≤18mK
- Frame Rate: 50Hz
- Objective Lens: 35mm F1.0
- Field of View: 12.5° x 10.0°
- Base Magnification: 2.0x
- Digital Zoom: 1x / 2x / 4x / 8x
- Eye Relief: 50mm
- Diopter Adjustment: -5 to +5D
- Focus Range: 5m to ∞
- Detection Range: 2500m
- Display Type: 0.39" OLED
- Display Resolution: 1024 x 768
- Color Modes: White Hot, High Light, Black Hot, Low Light, Pseudo Color
- 3D Gyroscope: Yes
- Laser Rangefinder Wavelength: 905nm
- LRF Max Range: 1000m
- LRF Accuracy: ±1m
- Battery: 1 x 18650 Li-ion (3500mAh)
- Operating Time: Up to 5 hours
- External Power: 5V via USB
- Internal Storage: 32GB
- Media Format: MP4 / JPG
- WiFi: 2.4GHz
- Shock Resistance: 10,000J
- Protection Rating: IP67
- Operating Temperature: -20°C to +50°C
- Dimensions: 220.2 x 65.8 x 86.2mm
- Weight: 610g
Perfect For
- Close-to-Mid-Range Thermal Shooting: Wide field of view for faster scanning and target acquisition
- Hunters and Tactical Users: Lightweight, durable, and built for demanding environments
- Shooters Wanting Smart Features: Ballistic support, gyroscope, recording, WiFi, and LRF in one unit
Why Choose the Sytong AM06-35LRF?
The AM06-35LRF combines high-resolution thermal imaging, wide-angle performance, laser ranging, and rugged durability into a lightweight thermal scope built for fast, confident shooting in the field.
Upgrade your setup with the Sytong AM06-35LRF Thermal Imaging Scope today.
Note: This product is made to order with an estimated delivery time of 3 to 4 weeks.
