Description

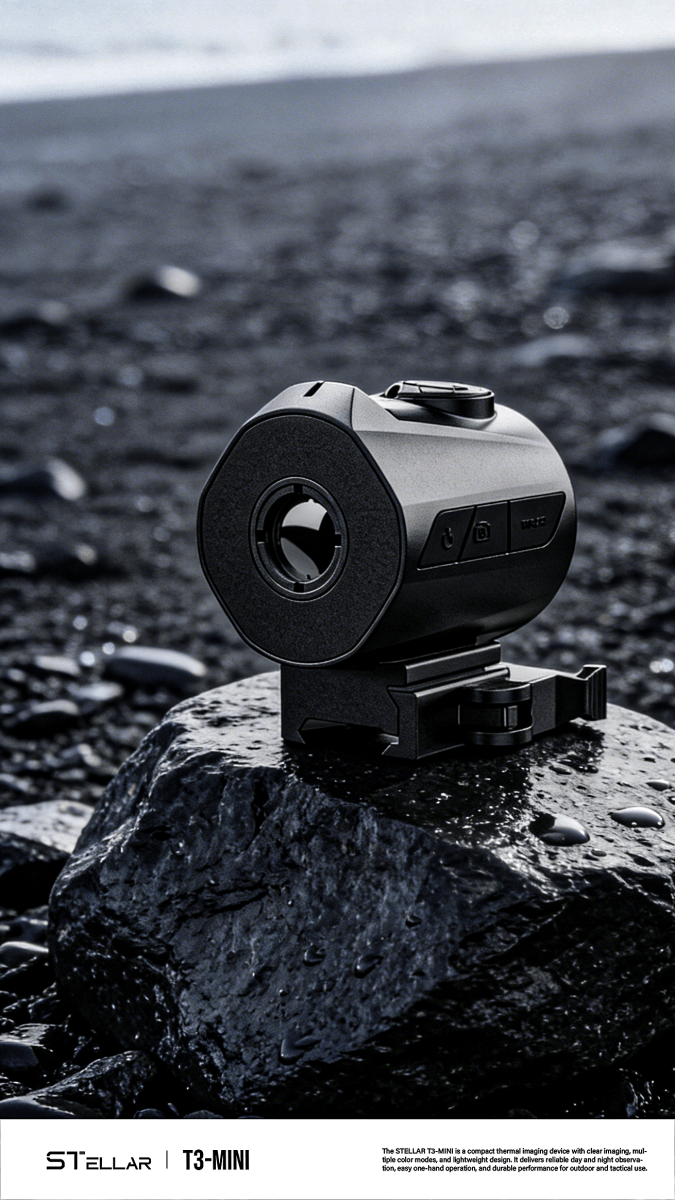

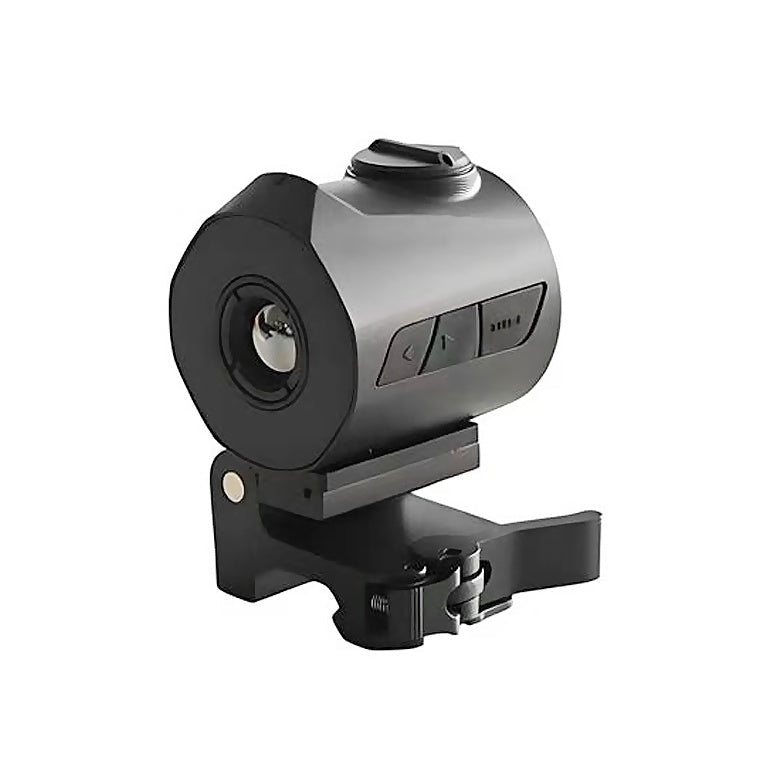

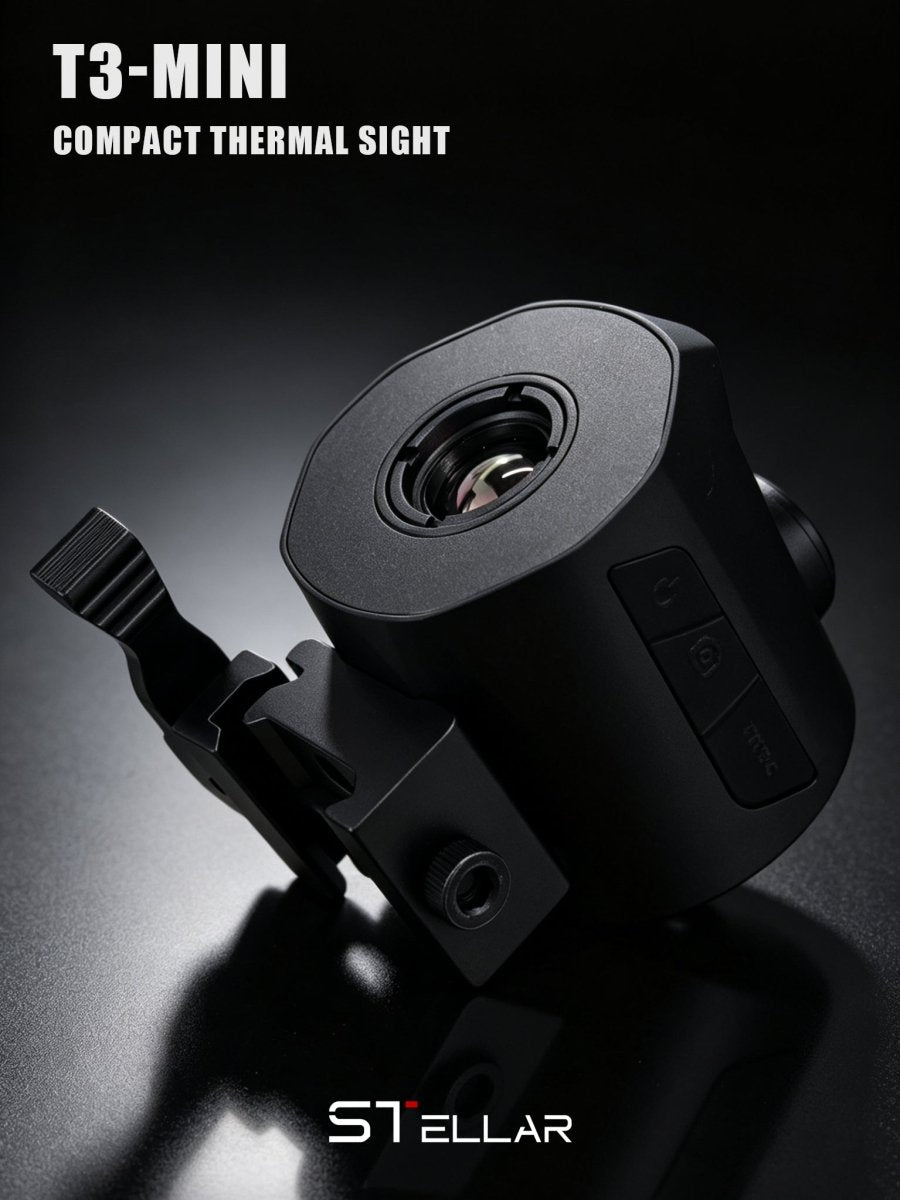

Ultra-Compact, Touch-Control Thermal Sight for Fast Close-Range Target Acquisition

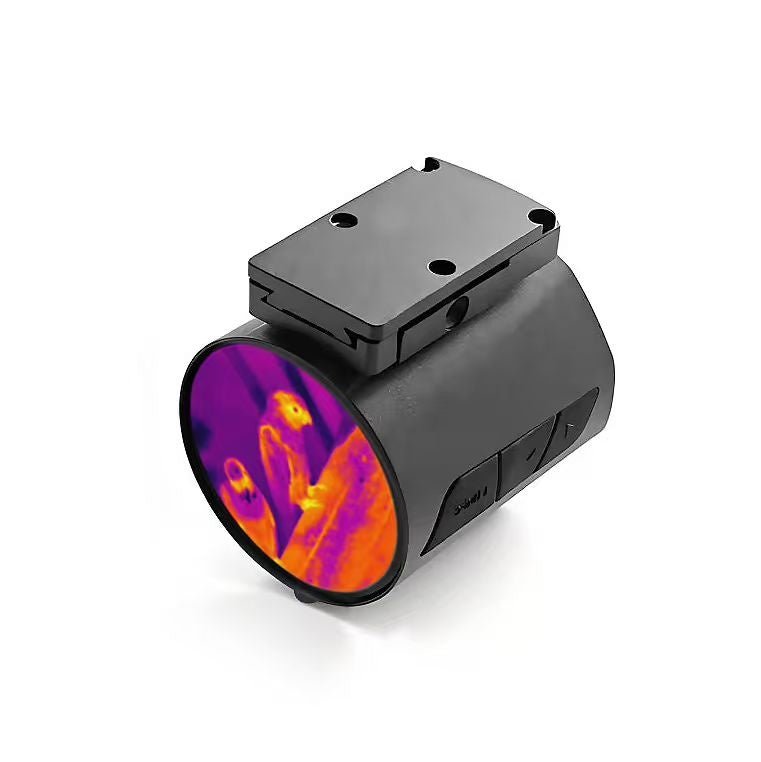

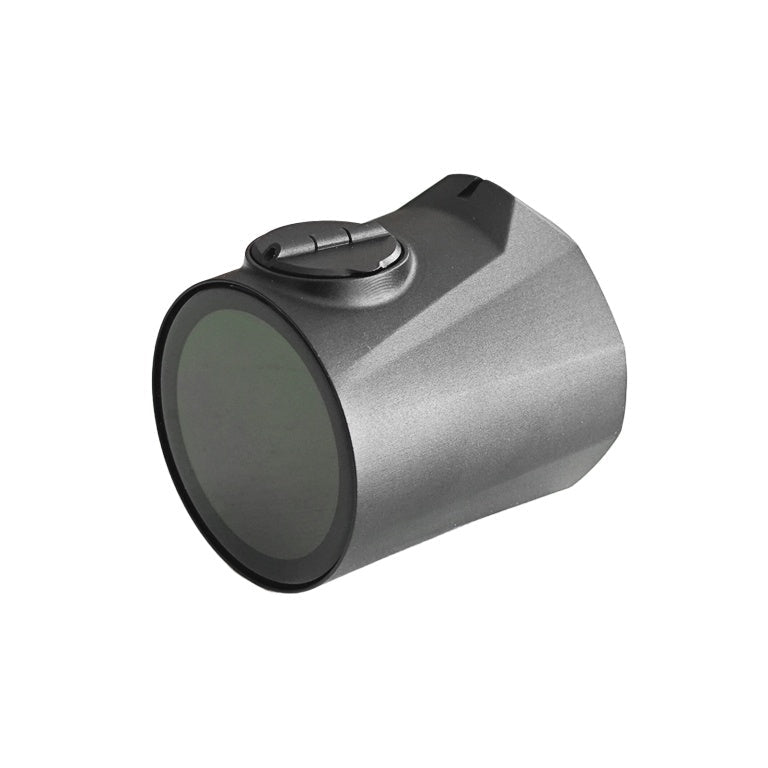

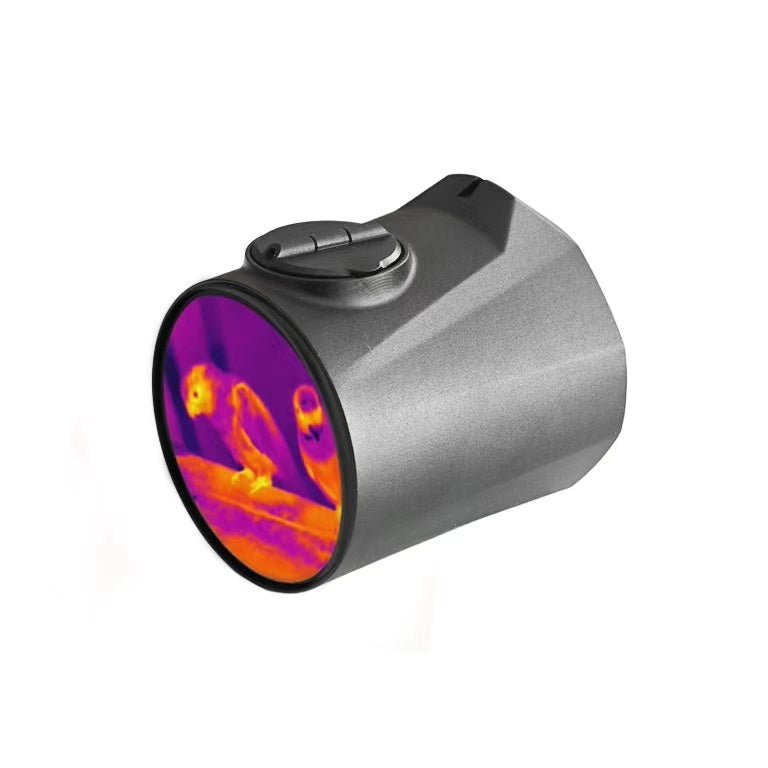

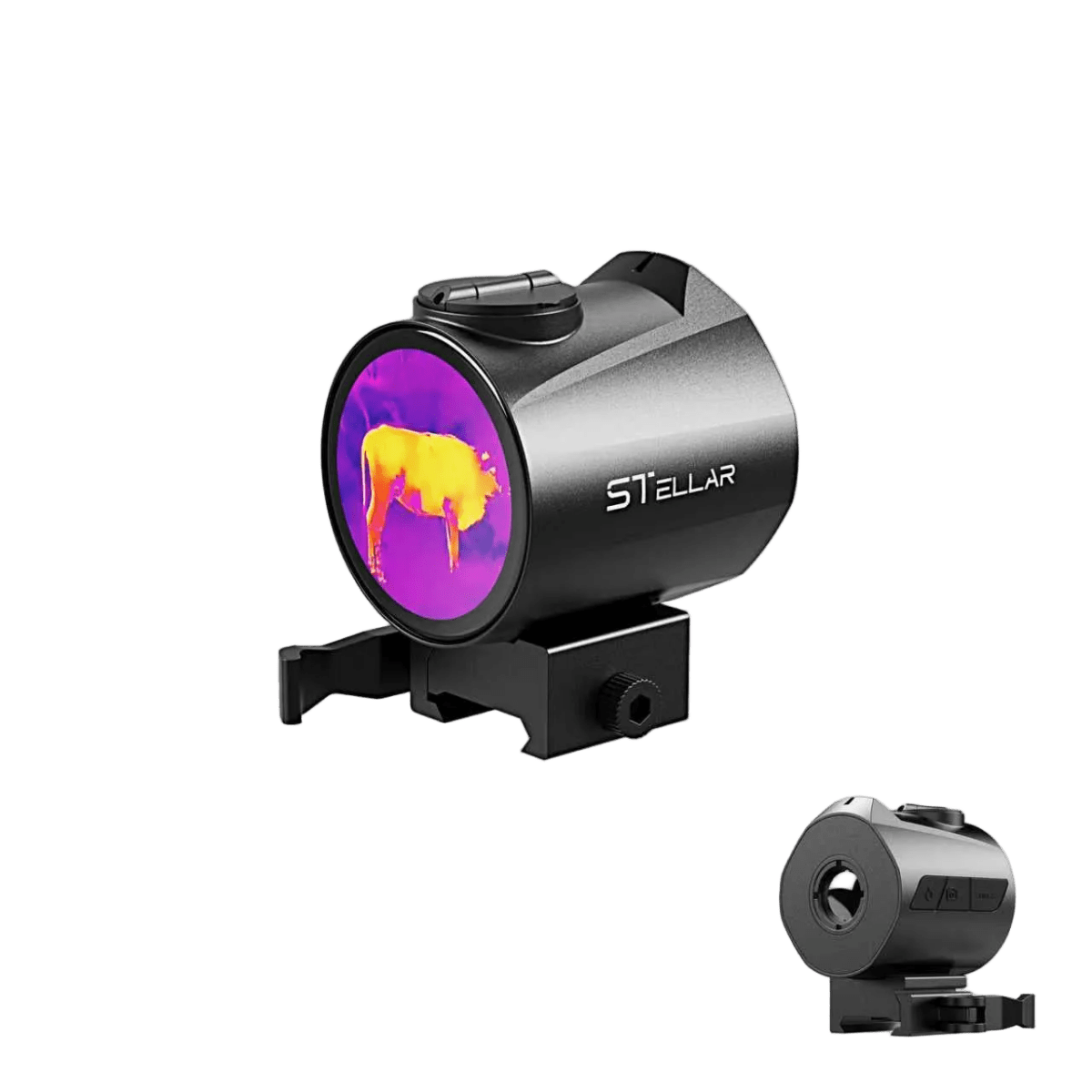

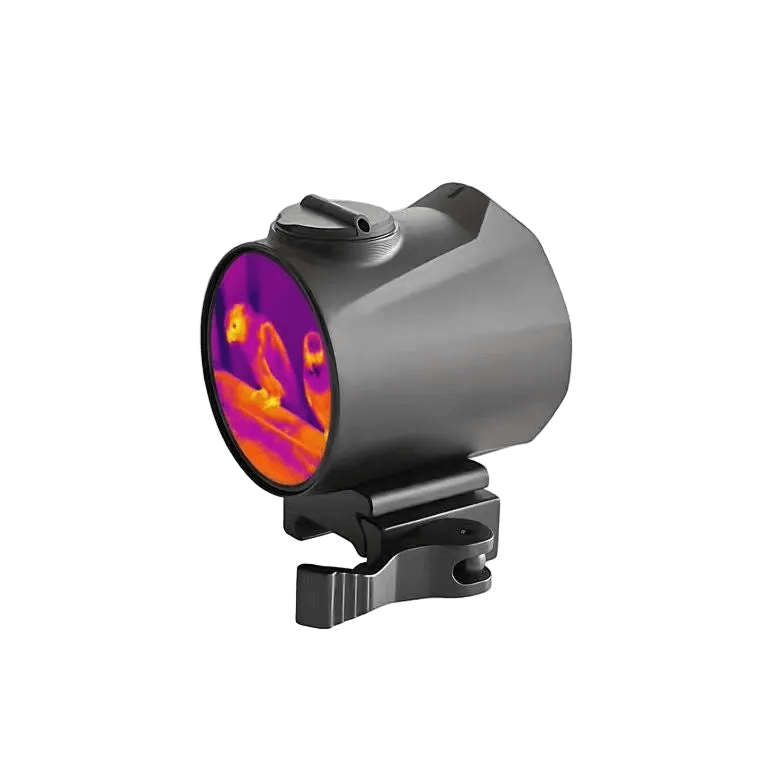

The STELLAR T3-MINI is a compact thermal imaging scope designed for quick deployment on lightweight platforms where size and speed matter. With a 256×192, 12µm thermal sensor, a wide 13.5°×10.1° field of view, and on-board photo/video recording, the T3-MINI delivers clear thermal awareness in a rugged, ultra-portable package—ideal for close to mid-range scanning and target confirmation.
Key Features
- Ultra-Compact Form Factor: Measures just 52 × 48 × 51mm for minimal bulk on compact setups
- Touch-Control Operation: Fast, intuitive control for rapid setting changes in the field
- Wide-Angle Close-Range Optics: 13mm F0.9 lens with 13.5° × 10.1° FOV for quick target pickup
- Clear Integrated Display: 1.4" OLED (466×466) with adjustable brightness for sharp viewing
- Multiple Thermal Palettes: Black Hot, White Hot, Red Hot, Fusion for different environments and preferences
- On-Board Recording: Built-in video recording plus photo capture for documentation and review
- Cursor Indicator: On-screen cursor for easier aiming reference and target placement
- Built-In Storage: Internal eMMC storage (no card required)
- Reliable Runtime: Powered by 1× 16340 battery with >4 hours runtime (at 25°C)
- Rugged & Shock Rated: 1000g / 0.4ms impact vibration rating and -20°C to +50°C operating range

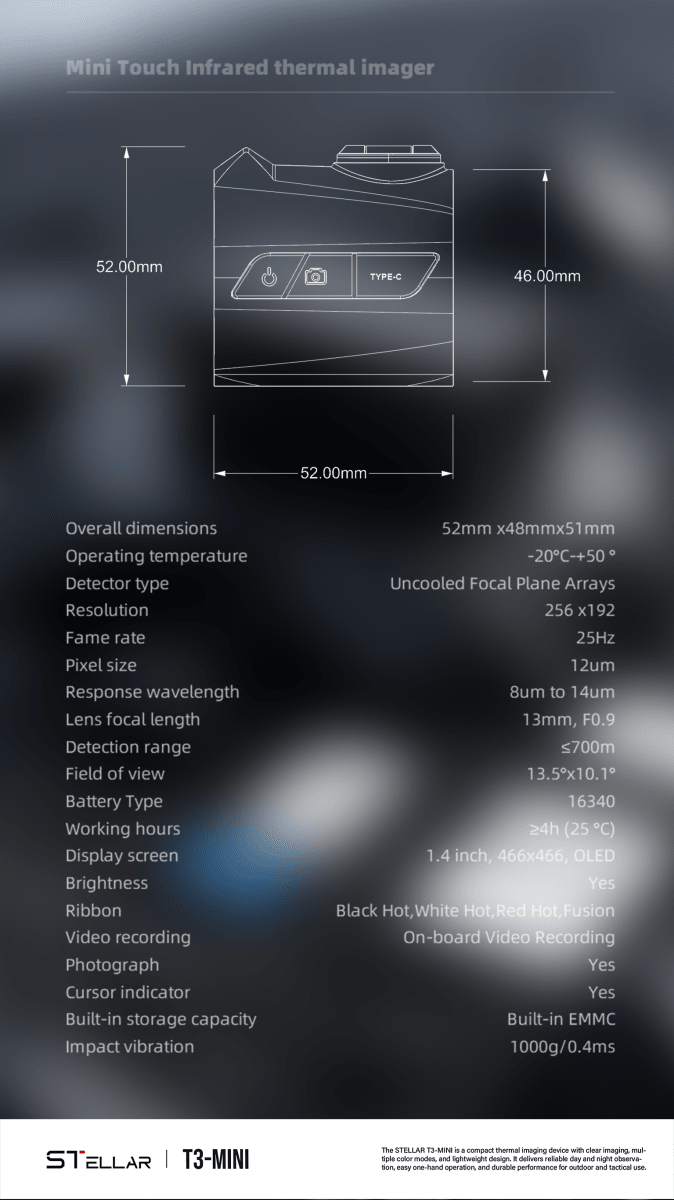

Technical Specifications
- Detector Type: Uncooled Focal Plane Arrays
- Sensor Resolution: 256 × 192
- Frame Rate: 25Hz
- Pixel Size: 12µm
- Response Wavelength: 8–14µm
- Lens: 13mm, F0.9
- Field of View: 13.5° × 10.1°
- Detection Range: <700m
- Display: 1.4" OLED, 466 × 466, adjustable brightness
- Palettes: Black Hot, White Hot, Red Hot, Fusion
- Recording: On-board video recording
- Photo Capture: Yes
- Cursor Indicator: Yes
- Storage: Built-in eMMC
- Battery Type: 16340
- Runtime: >4 hours (25°C)
- Operating Temperature: -20°C to +50°C
- Dimensions: 52 × 48 × 51mm
- Shock/Impact: 1000g / 0.4ms
Perfect For
- Close-Range Thermal Scanning: Fast target pickup in tight terrain and dynamic situations
- Lightweight Builds: Keeps balance and handling sharp on compact platforms
- Night Observation & Pest Control: Simple, quick thermal capability with recording
- Users Who Want Built-In Recording: Capture footage/photos without extra devices
Why Choose the STELLAR T3-MINI?
If you want a small, touch-controlled thermal sight with a wide FOV, onboard recording, and a crisp OLED display, the T3-MINI delivers practical thermal performance without adding bulk.
Upgrade your setup with the STELLAR T3-MINI Compact Thermal Imaging Scope today.
