Description

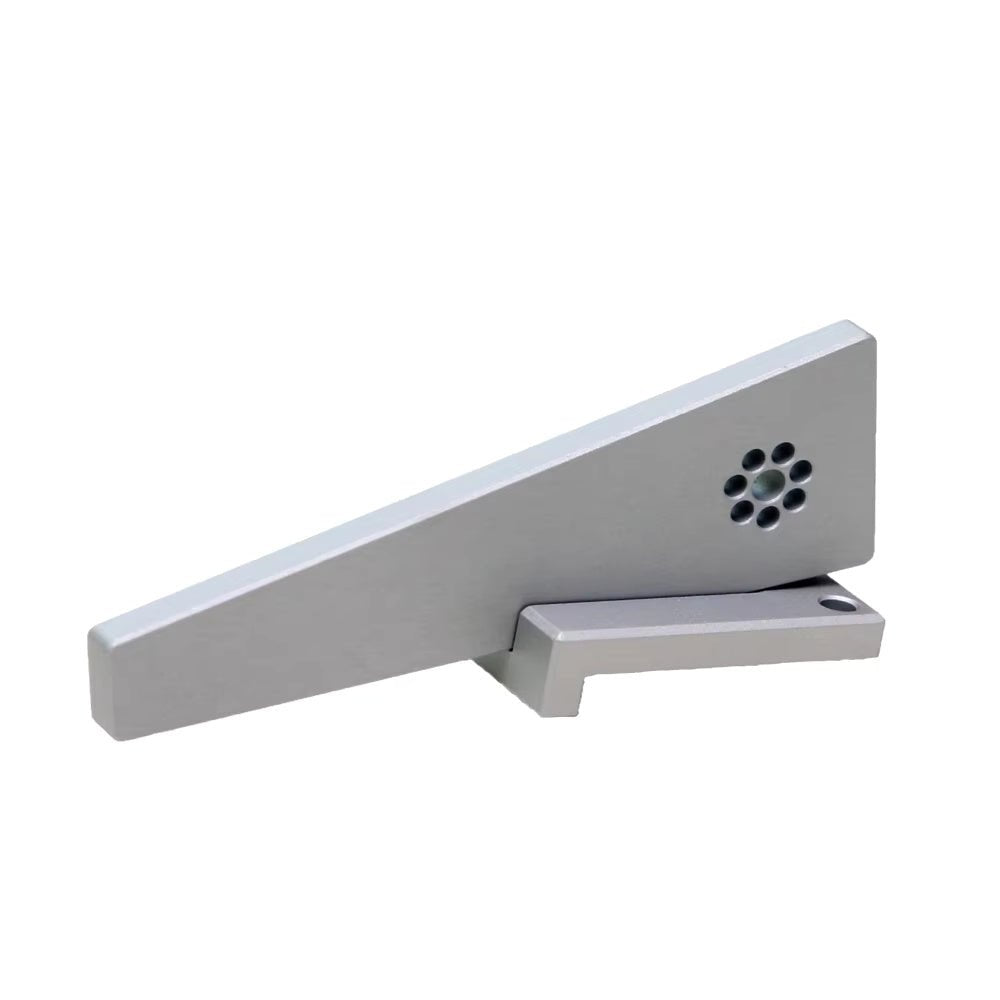

Scope Mount Levelling Adjust Tool Set (3pc Aluminium Wedge Leveller, Silver)
This 3-piece scope levelling tool set makes it faster and easier to level a riflescope during installation—without guessing by eye. It includes a leveller base plus small and large wedges that gently rotate the scope until the turret cluster sits level, helping you align the optic before final torque. Designed for use on a Picatinny rail or one-piece mount, it’s a simple, repeatable way to improve mounting accuracy.
Key Features

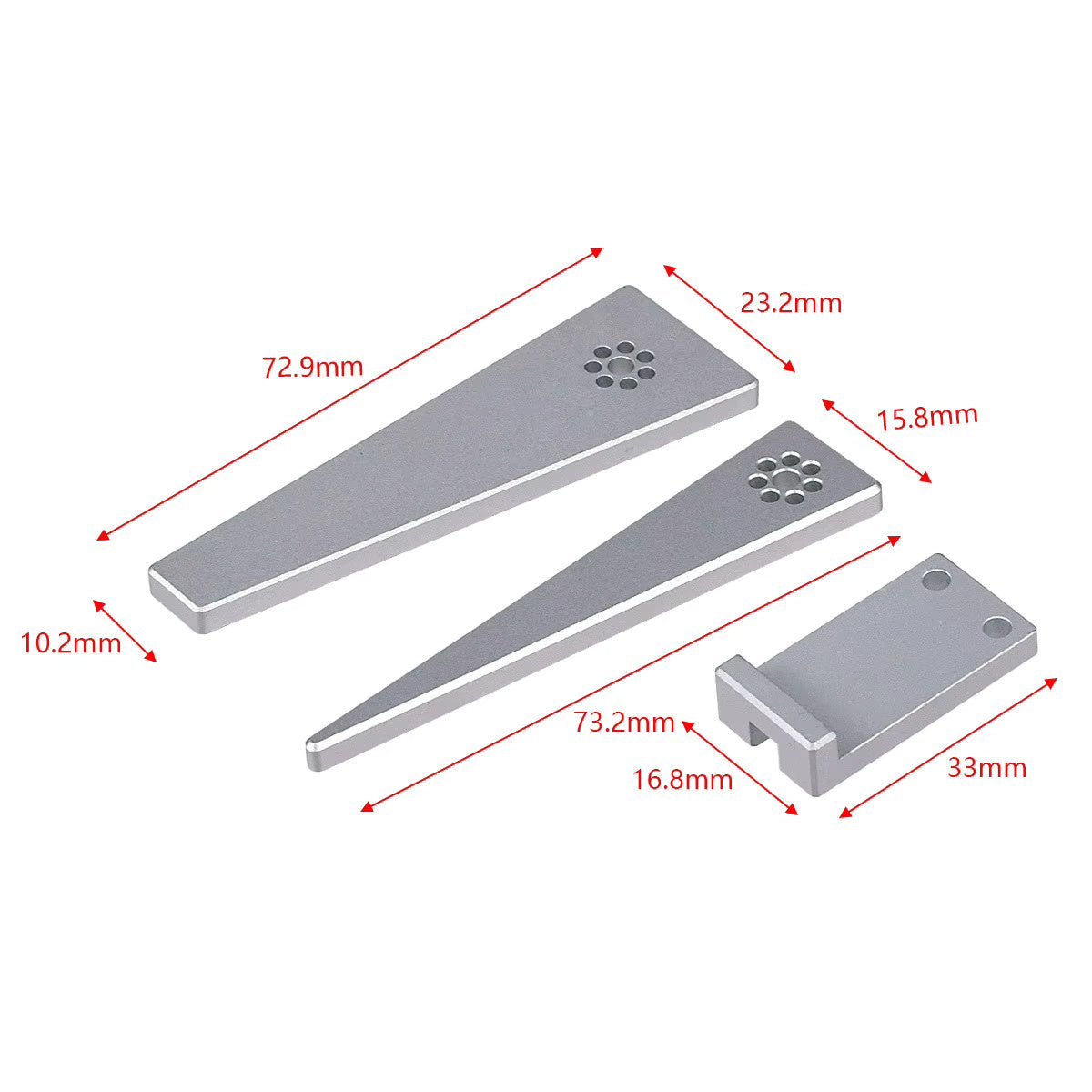

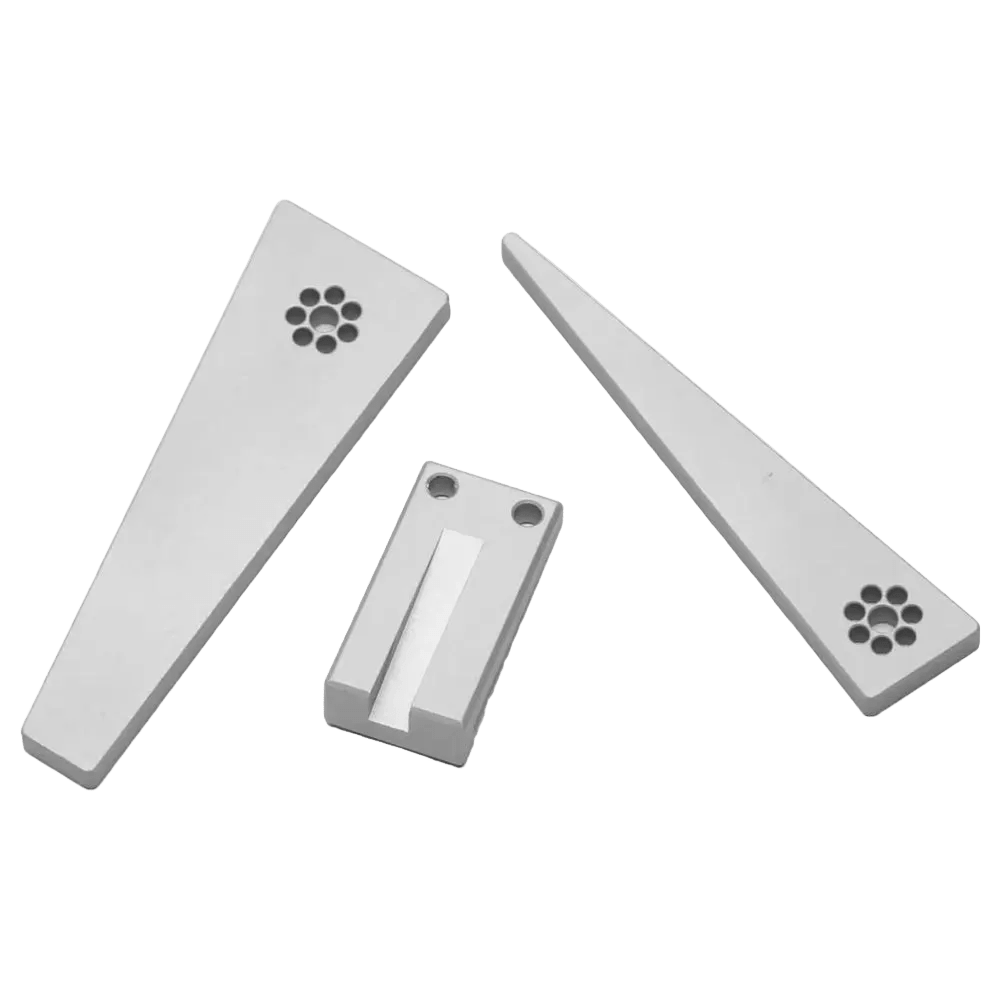

- 3-Piece Kit: Leveller base + small wedge + large wedge
- Quick Scope Levelling: Wedge system applies controlled pressure to rotate the scope into level
- Picatinny / One-Piece Mount Compatible: Base sits directly under the turret cluster
- Two Wedge Sizes for Different Clearances: Covers a wide range of scope/mount spacing
- Durable Aluminium Construction: Lightweight, corrosion-resistant, workshop-ready
Clearance Requirements (Rail/Mount to Turret Cluster)
- Small wedge: 0.190" to 0.730"
- Large wedge: 0.680" to 1.200"
Directions for Use
- Place scope in rings or one-piece mount; tighten just enough to remove slack (scope should still rotate by hand).

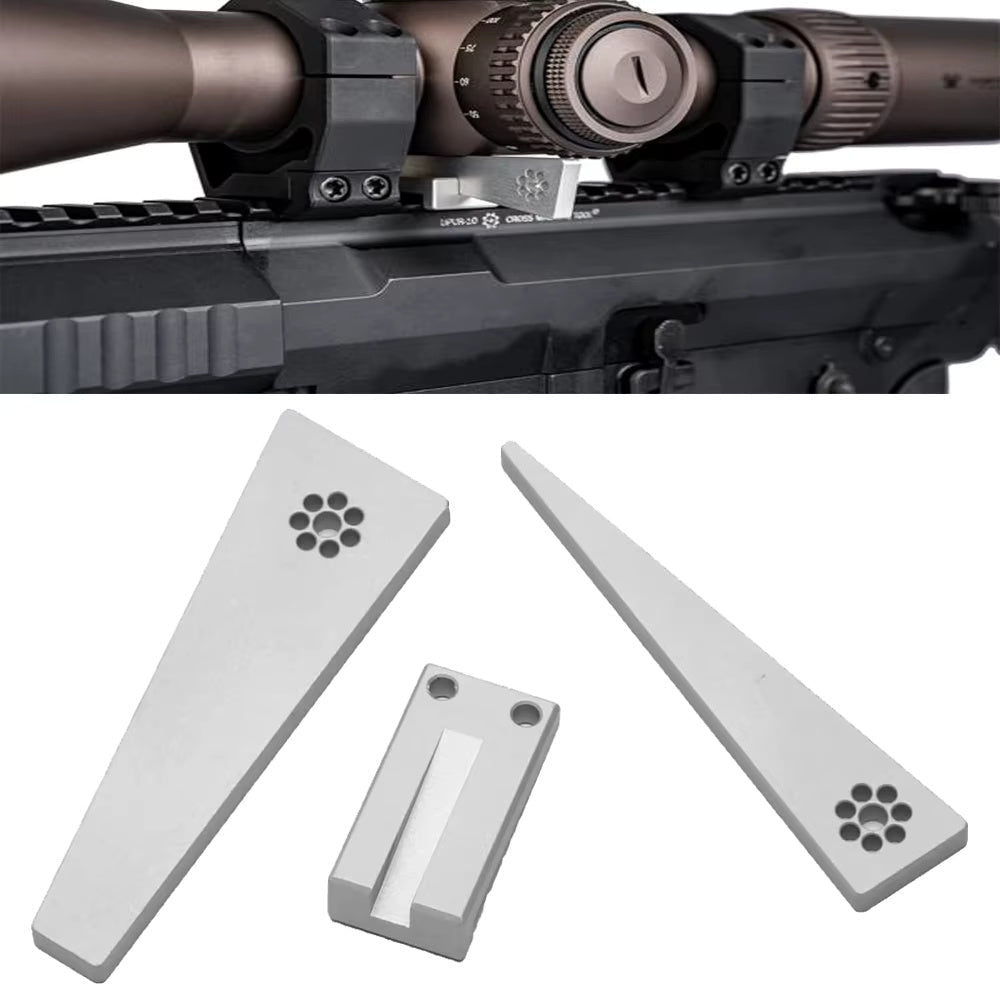

- Place the leveller base on the Picatinny rail/mount directly under the turret cluster (angled slot facing up).
- Slide the wedge into the base from the side until it contacts the bottom of the turret cluster.
- Apply gentle pressure until the scope rotates and levels.
- Tighten one ring to the mount manufacturer’s torque spec.
- Remove the leveller.
- Tighten the other ring to spec.
Specifications
- Product Name: Scope Mount Levelling Adjust Tools
- Material: Aluminium
- Colour: Silver
- Package: 3pc set
Note
This method assumes the scope’s turret cluster and reticle are aligned
