Description
Compact Thermal Sight with AMOLED Display, Wide Field of View, and Onboard Recording

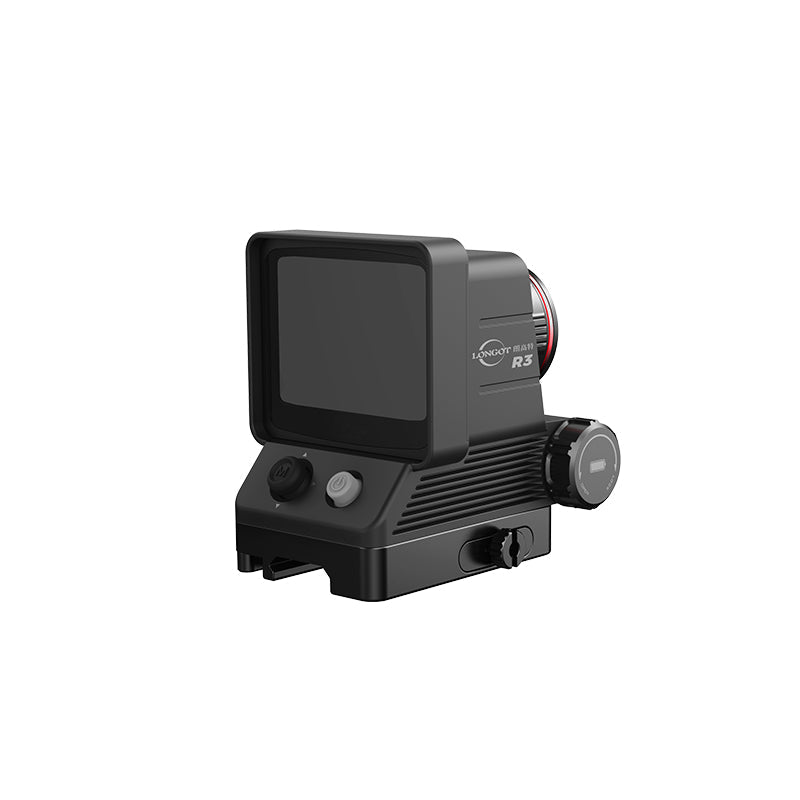

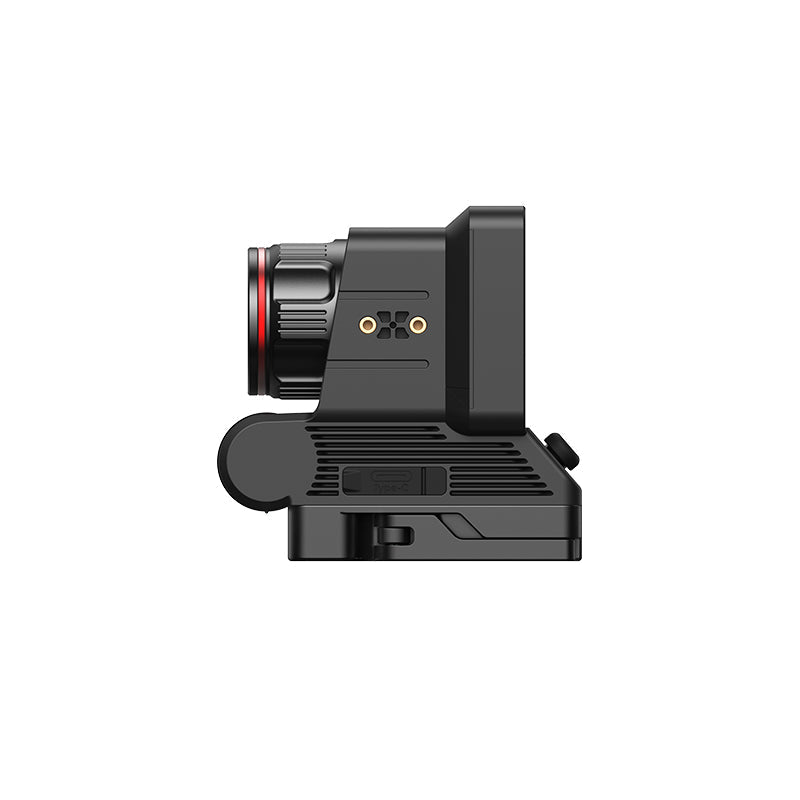

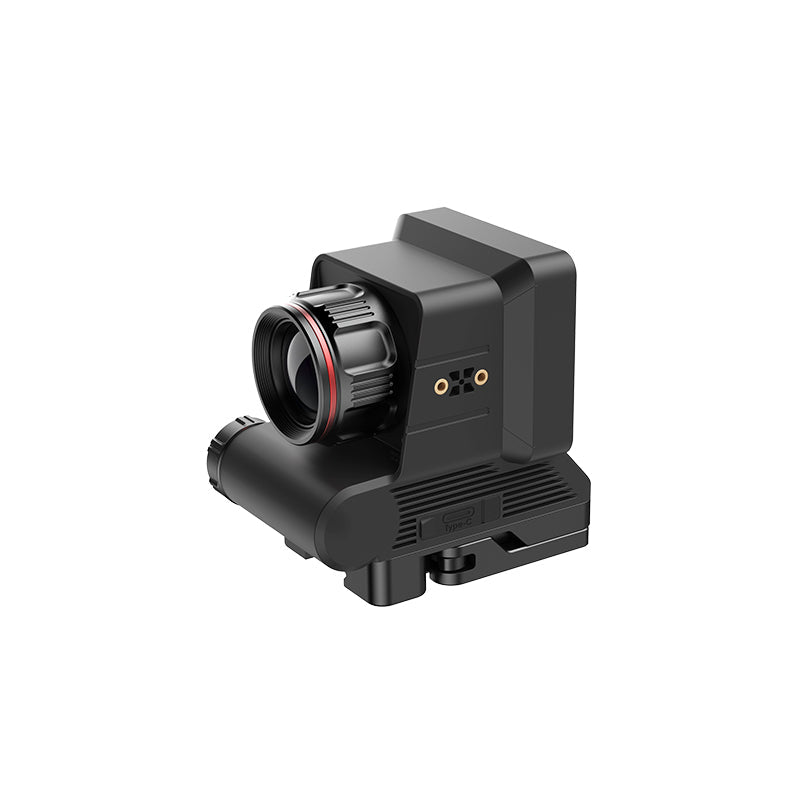

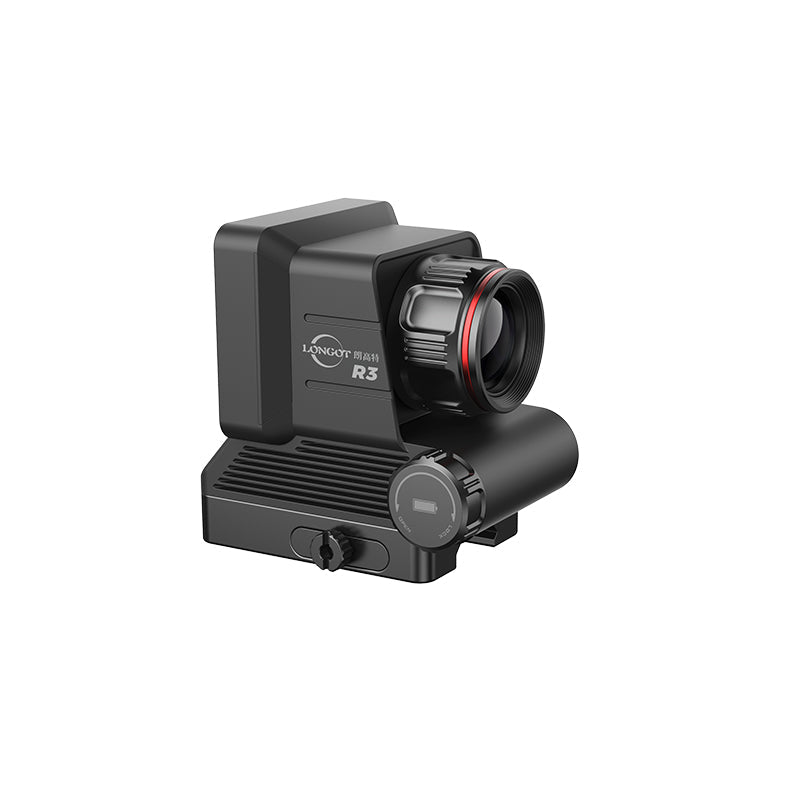

The Longot R3 is a lightweight thermal imaging sight built for fast target acquisition, close-to-mid-range engagement, and agile rifle setups. With a 384x288 12µm thermal sensor, 25mm objective lens, 2.6-inch AMOLED display, and 32GB internal storage, it delivers clear thermal performance in a compact, field-ready design.
Note: This product is made to order with an estimated delivery time of 3 to 4 weeks.
Key Features
- Ultra-Compact & Lightweight: Weighs under 410g with a compact 72 x 89 x 92mm footprint
- 384x288 12µm Thermal Sensor: Clear thermal imaging with strong detail and smooth 50Hz performance
- 25mm Objective Lens: Wide 10.5° x 7.9° field of view for fast target acquisition
- Detection Range up to 1300m: Effective for close-to-mid-range thermal observation and engagement

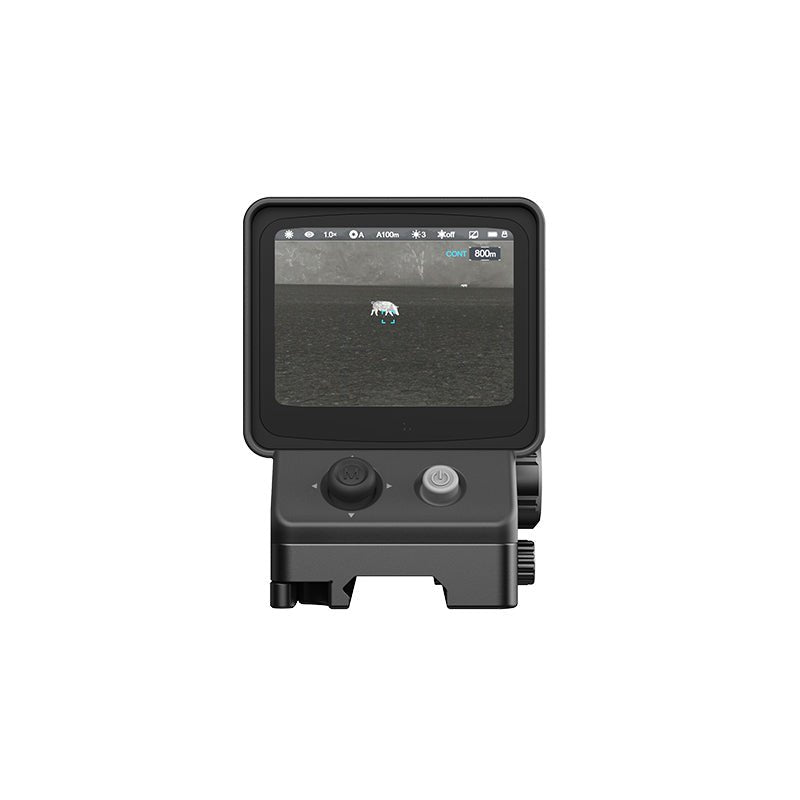

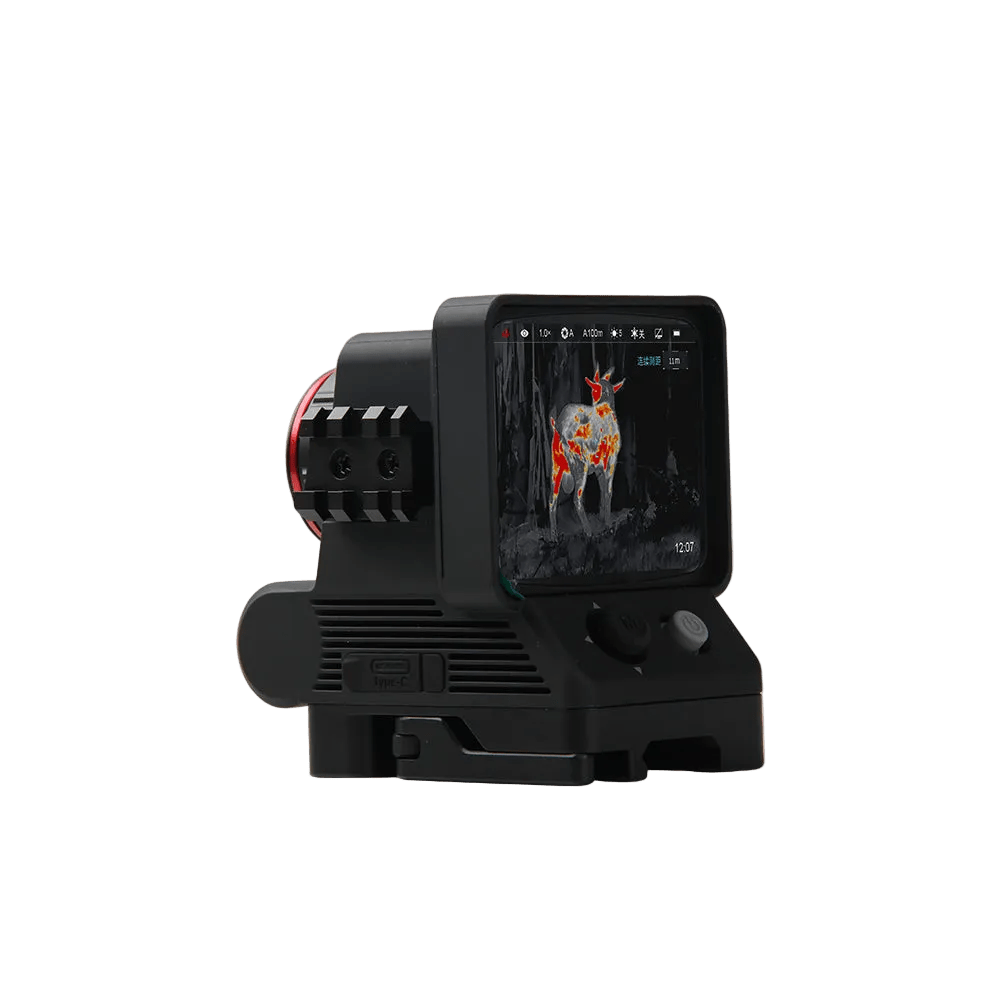

- Large 2.6" AMOLED Display: Bright 800x600 screen with strong contrast and easy viewing
- Picture-in-Picture (PIP): Enlarges the aiming area for improved target detail
- 32GB Internal Storage: Capture photos and record video directly on the device
- Quick Removal Rail Fixture: Fast manual installation and removal
- IP67 Waterproof Rating: Built for rain, dust, and harsh field conditions
- 1000G Shock Resistance: Designed to handle recoil and demanding use
- Flexible Power Options: Runs on 18500 battery and supports USB Type-C external power

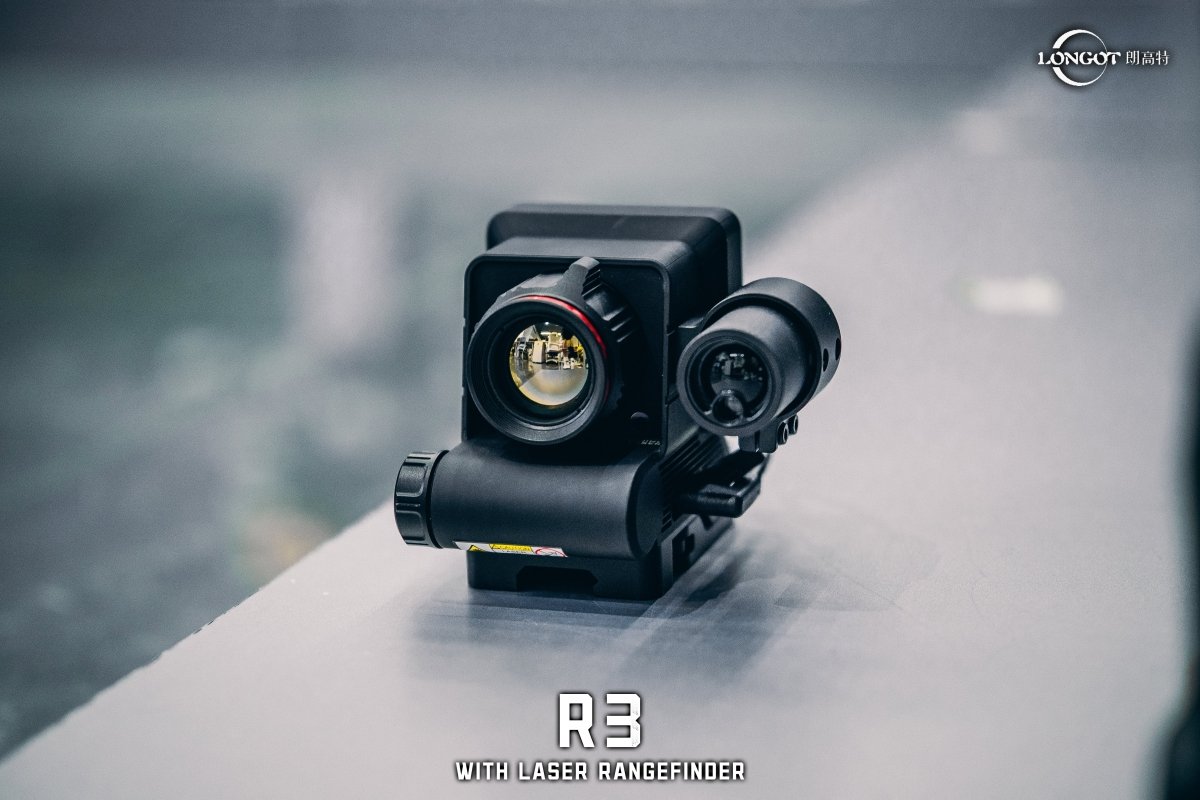

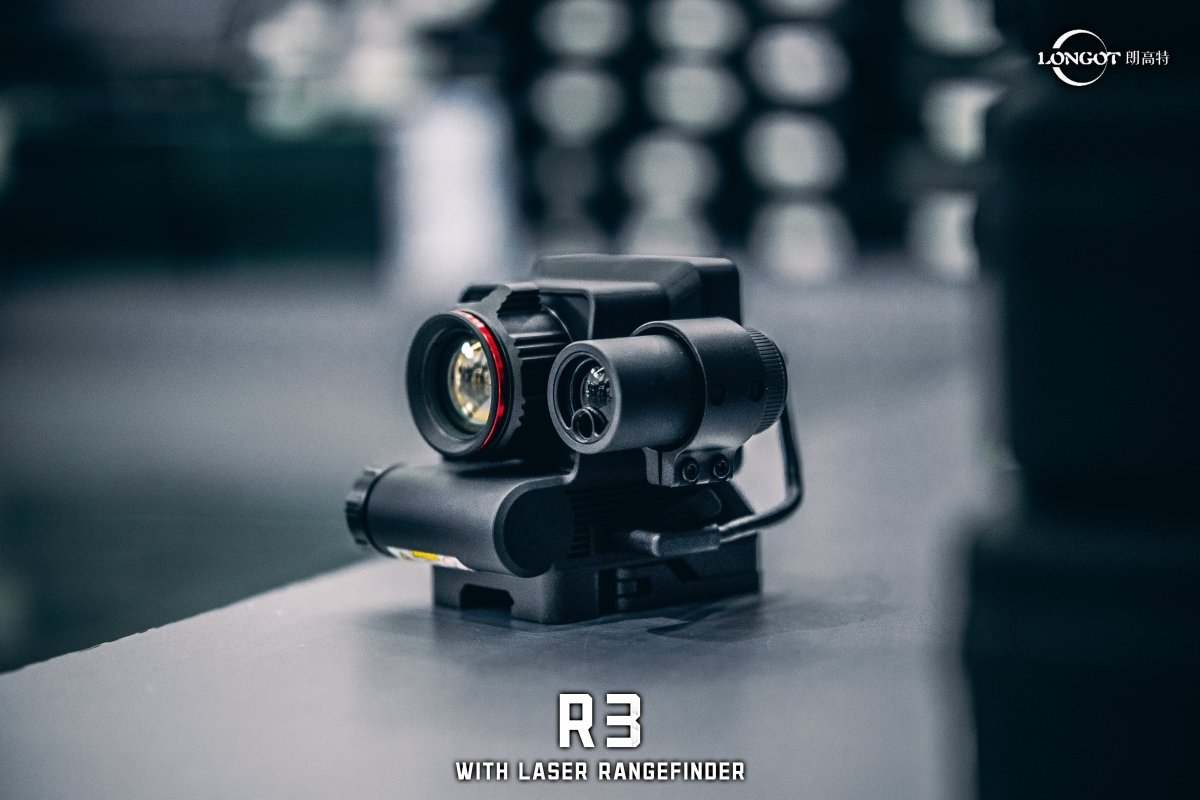

- Optional Laser Rangefinder Variant Available: R3 platform also offered in LRF-equipped versions
Technical Specifications
- Model: R3
- Detector Type: VOx
- Sensor Resolution: 384 x 288
- Pixel Pitch: 12 µm
- NETD: ≤40mK
- Frame Rate: 50Hz
- Objective Lens: 25mm
- Field of View: 10.5° x 7.9°
- Digital Zoom: 1x / 2x / 3x / 4x
- Detection Range: Up to 1300m
- Display Type: 2.6" AMOLED
- Display Resolution: 800 x 600
- Battery: 1 x 18500 Li-ion (supports 18650)
- Battery Capacity: 1500mAh / 3.7V
- Operating Time: Up to 5 hours
- External Power: 5V USB Type-C
- Internal Storage: 32GB
- Shock Resistance: 1000G / 0.3ms
- Protection Rating: IP67
- Operating Temperature: -20°C to +50°C
- Weight: <410g (without battery)
- Dimensions: 72 x 89 x 92mm
Perfect For
- Close-to-Mid-Range Thermal Use: Wide field of view for fast-moving targets
- Lightweight Rifle Builds: Minimal added bulk for better handling
- Hunters and Tactical Users: Compact, rugged, and easy to operate in the field
Why Choose the Longot R3?
The Longot R3 combines compact size, clear thermal imaging, a large AMOLED display, and practical recording features into a lightweight thermal sight that’s ideal for fast, responsive shooting setups.
Upgrade your setup with the Longot R3 Thermal Imaging Sight today.
Note: This product is made to order with an estimated delivery time of 3 to 4 weeks.
