Description

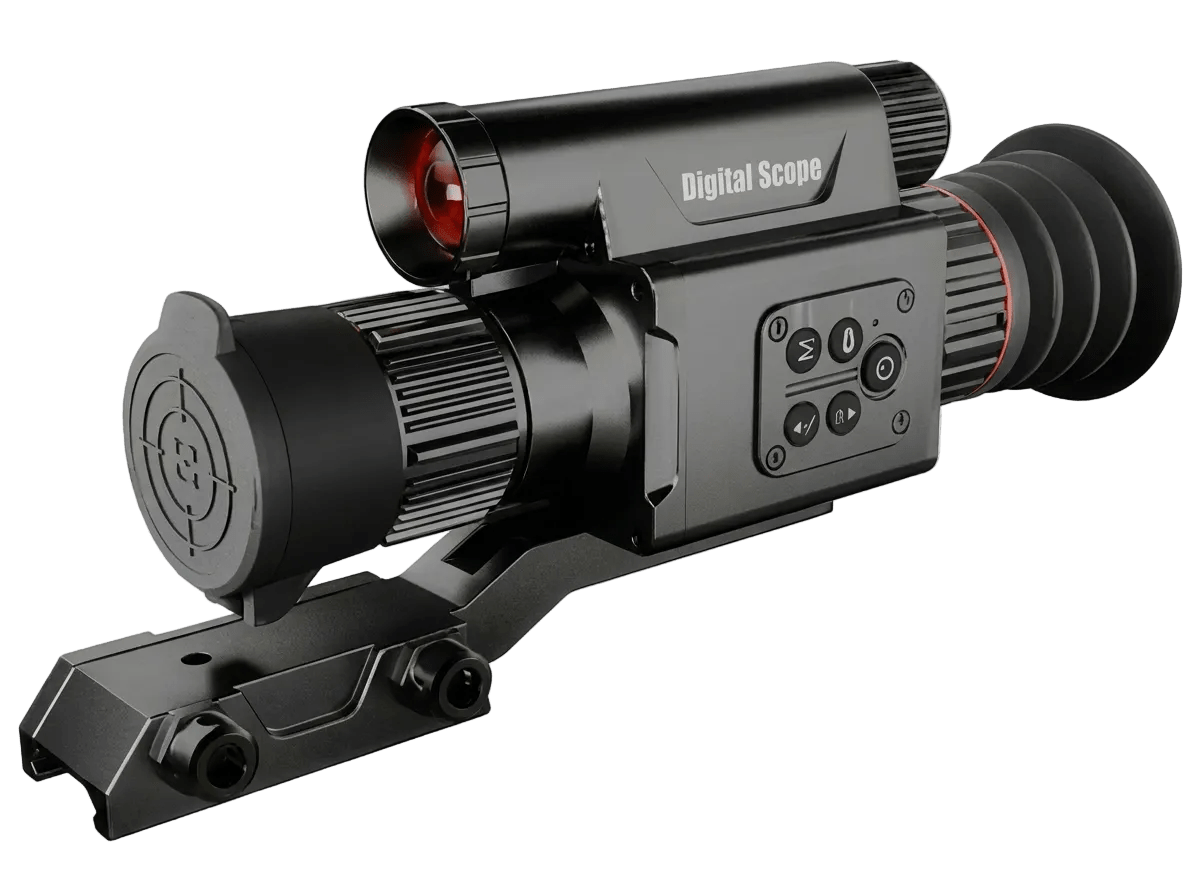

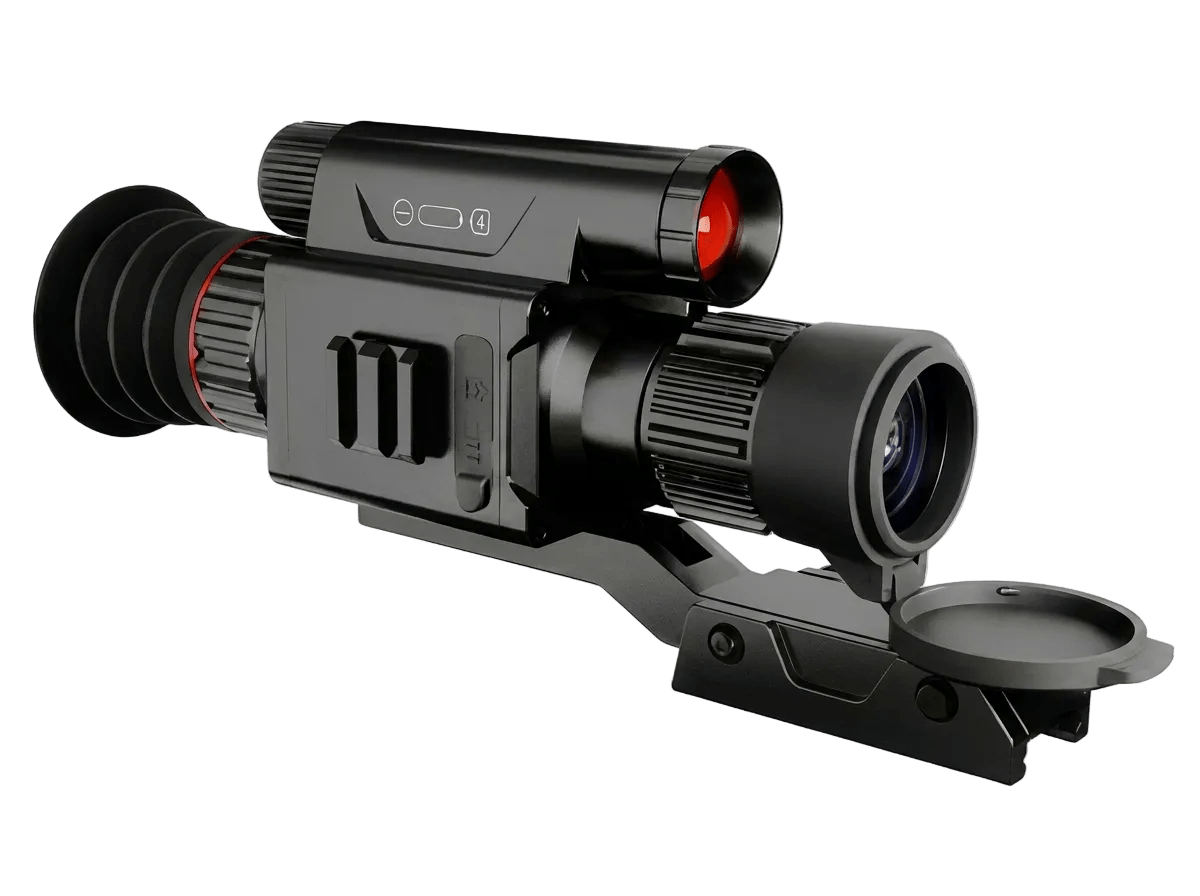

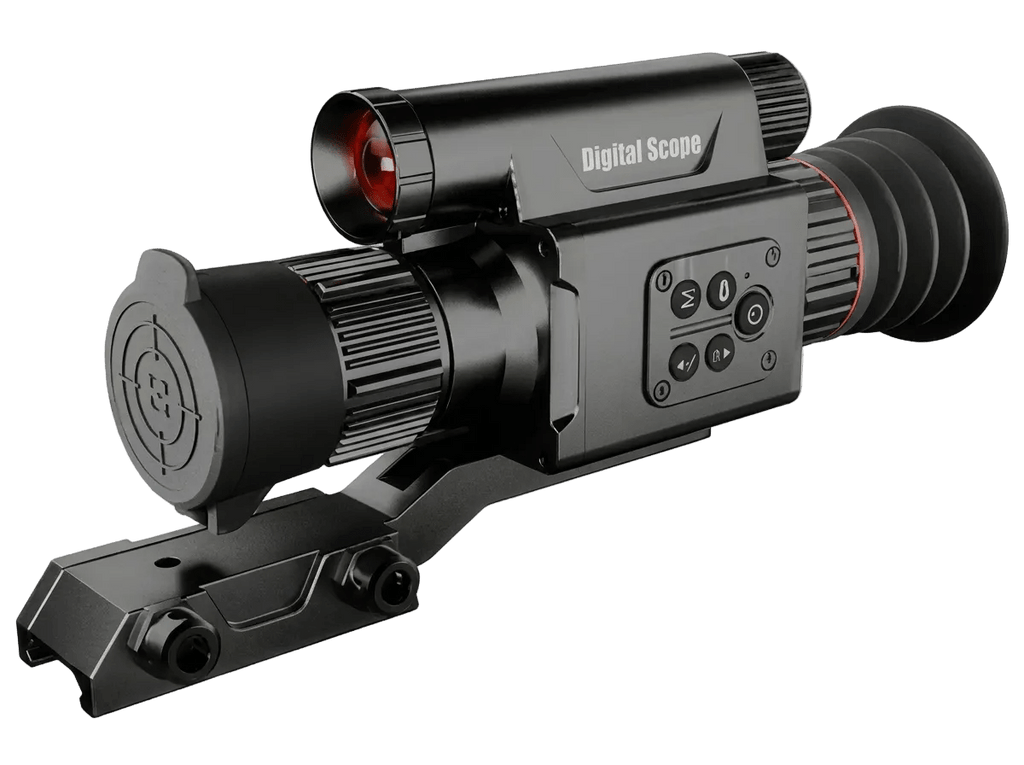

DS-X7 4K Digital Night Vision Scope (5–20x, 850nm IR, IPS Display)
The DS-X7 Night Vision Scope delivers sharp 4K recording and a clear IPS HD display in a rugged, recoil-rated housing. With 5–20x magnification, picture-in-picture, 8 reticle styles, and an adjustable 850nm IR illuminator rated to 300m, it’s built for confident target ID and precise aiming in low light—plus USB‑C charging via a single 18650 rechargeable battery.

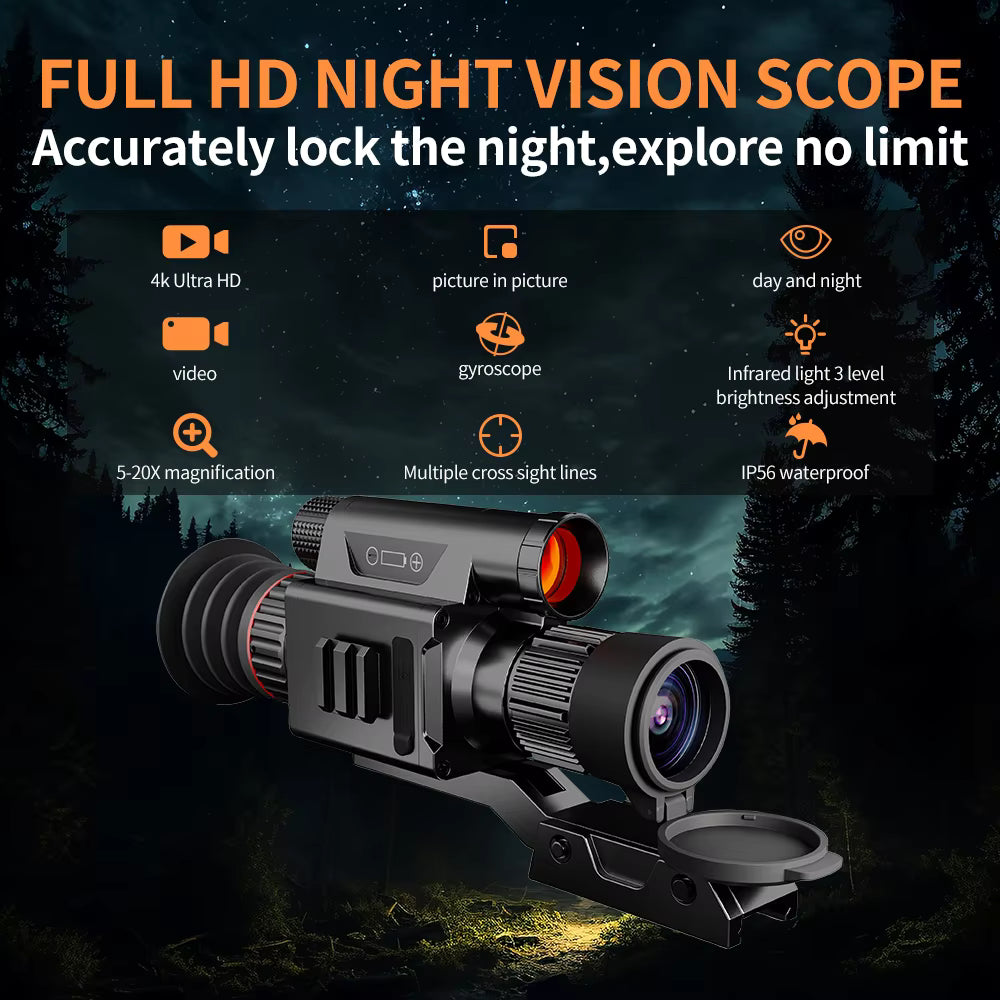

Key Features
- Star-Class CMOS Sensor: High-sensitivity low-light performance
- 4K Ultra-Clear Imaging + Recording: 4K/30fps and up to 1080p/60fps video options
- IPS 1280×720 HD Screen: 5-level brightness adjustment for clarity in changing conditions
- 5–20x Magnification: 5x optical with 1–4x digital zoom
- Picture-in-Picture (PIP): Enlarges the target area for more precise shot placement

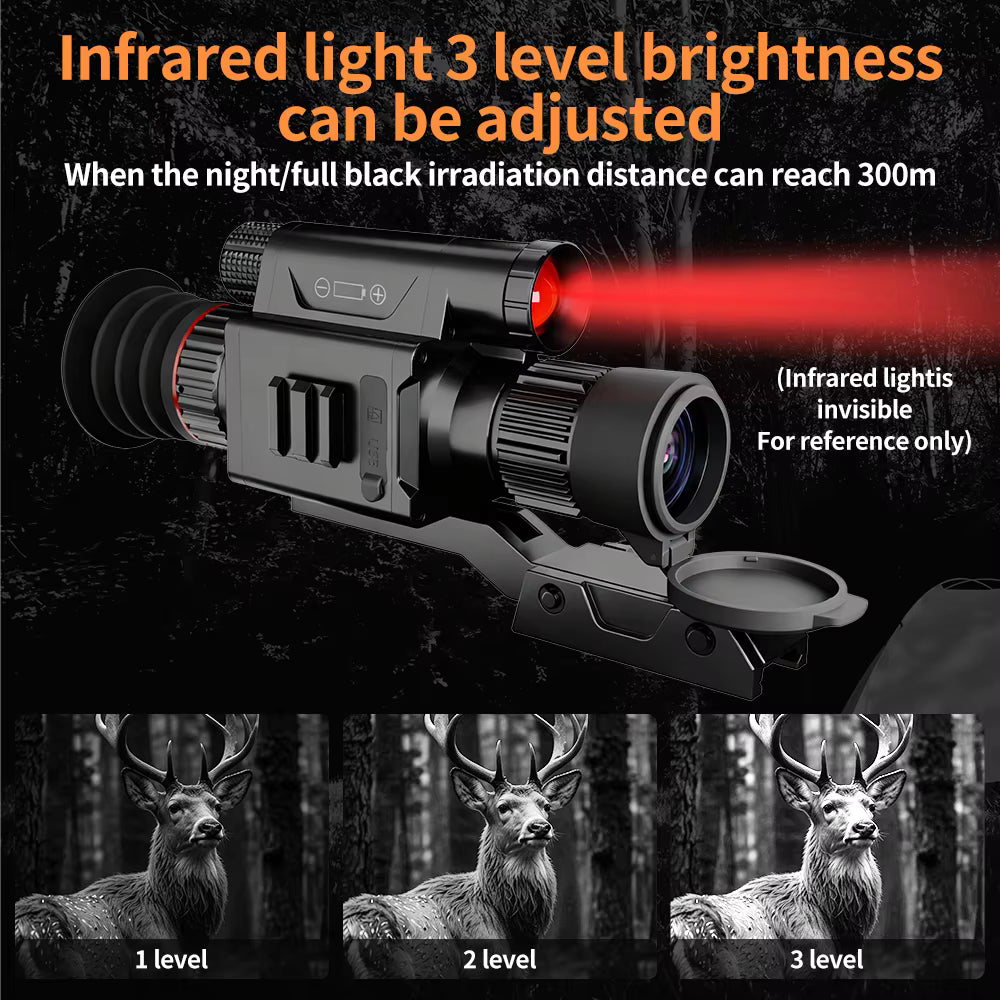

- 850nm IR Illuminator (3 Levels): Built-in IR with adjustable brightness, up to 300m illumination distance (listed)
- 3D Gyroscope: Displays pitch angle for better awareness on uneven terrain

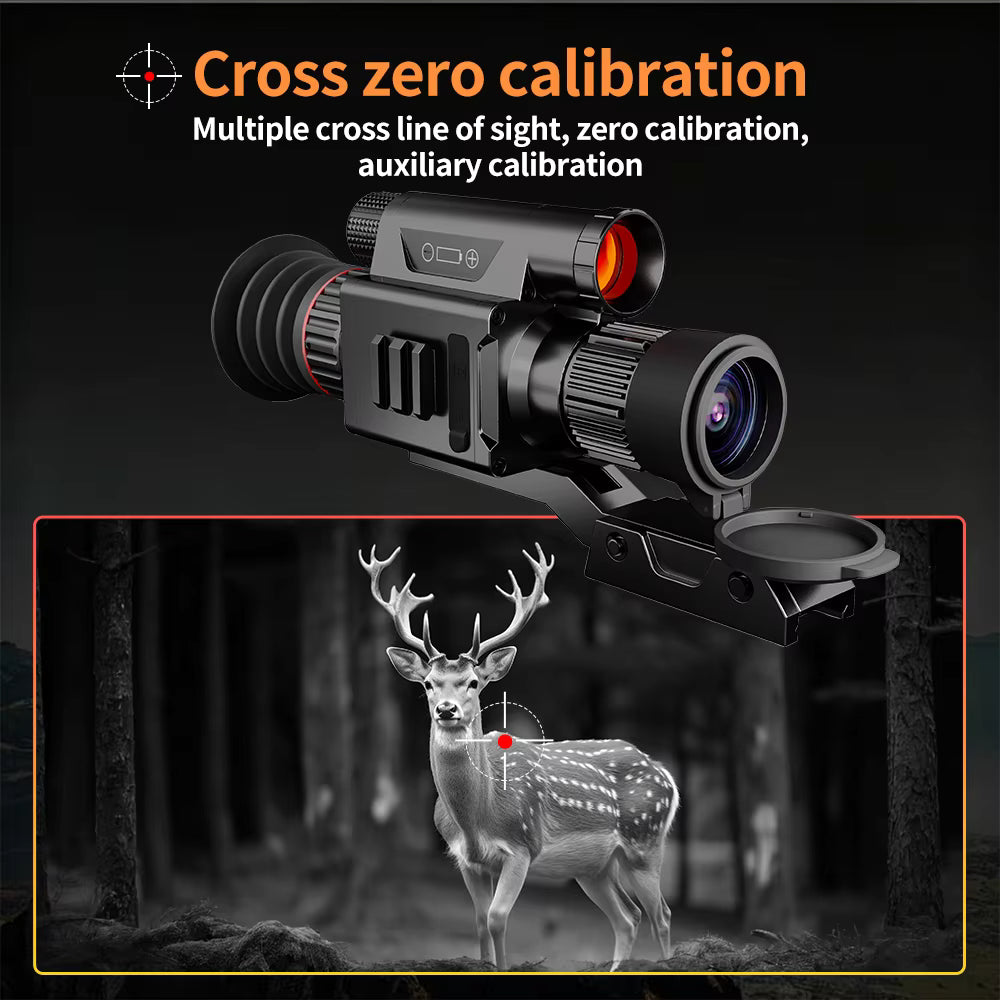

- Crosshair Zeroing Calibration: Dial in your zero with onboard calibration
- Reticle Options: 8 styles and 3 colours (red/green/yellow)
- Rugged Build: Alloy structure rated to 1200Gs impact resistance
- Weather Resistant: IP56 waterproof rating

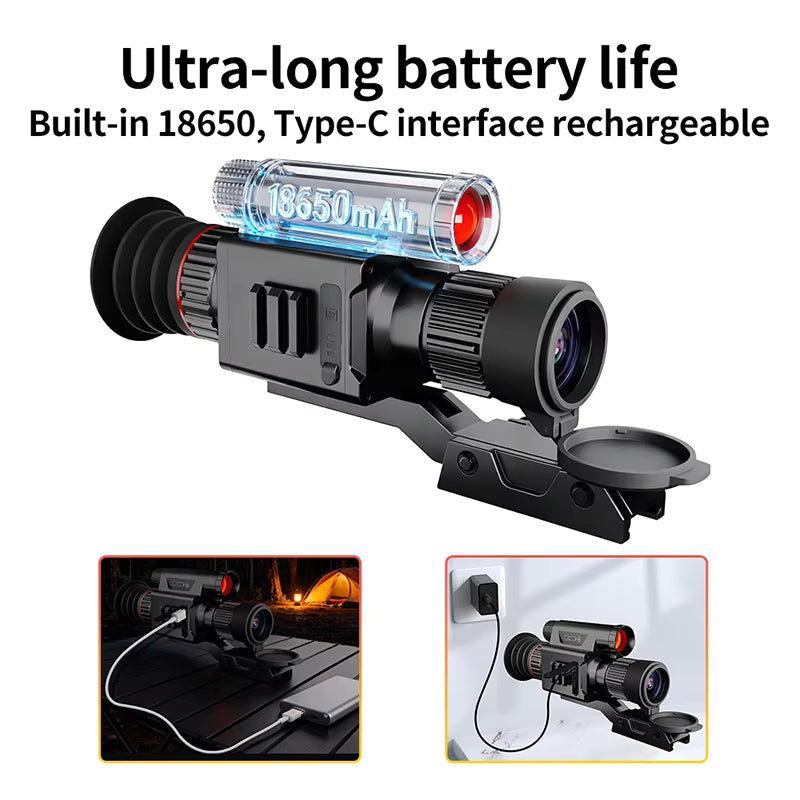

- USB‑C + 18650 Power: Rechargeable 3.7V 18650 battery, USB‑C port
Technical Specifications
- Magnification Range: 5x–20x
- Optical Magnification: 5x
- Digital Zoom: 1x–4x
- Objective Lens: 42mm
- Aperture: F1.6
- Focus: Manual rotation
- Focusing Range: 2m to infinity
- Eye Relief: Up to 50mm

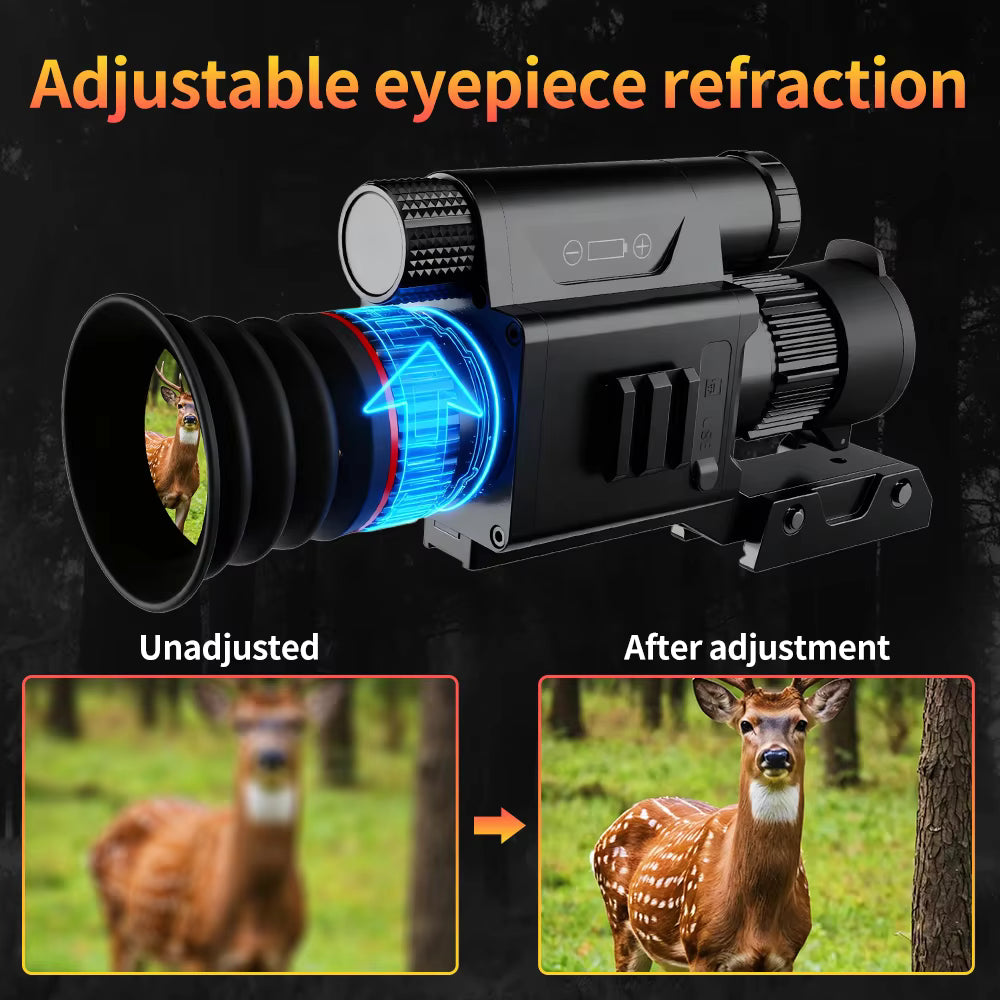

- Diopter Adjustment: +4 / -4D (approx. ±400 degrees)
- Field of View: 6.2° × 3.4°
- Display: 1280×720 IPS, 5 brightness levels
- IR Illuminator: 850nm, 3 brightness levels, up to 300m (listed)
- Video Resolutions: 4K/30fps, 1080p/60fps, 1080p/30fps
- Colour Modes: Colour / Black & White / Green
- Loop Recording: Off / 3 min / 5 min / 10 min
- Storage: TF card up to 512GB (Class 10+ recommended)
- Power: 1× 3.7V 18650 rechargeable
- USB Interface: Type‑C
- Operating Temp: -20°C to +50°C
- Storage Temp: -30°C to +60°C
- Size / Weight: Approx. 198 × 69 × 55mm / 660g
Perfect For
- Low-light observation and target identification
- Users who want PIP for precise aiming
- Recording hunts/training sessions in 4K
- Setups needing a recoil-rated, weather-resistant digital NV scope
Why Choose the DS-X7?
It combines a clear IPS display, practical aiming tools (PIP, reticles, gyro, zeroing), and 4K recording in a tough, USB‑C rechargeable platform built for real field use.

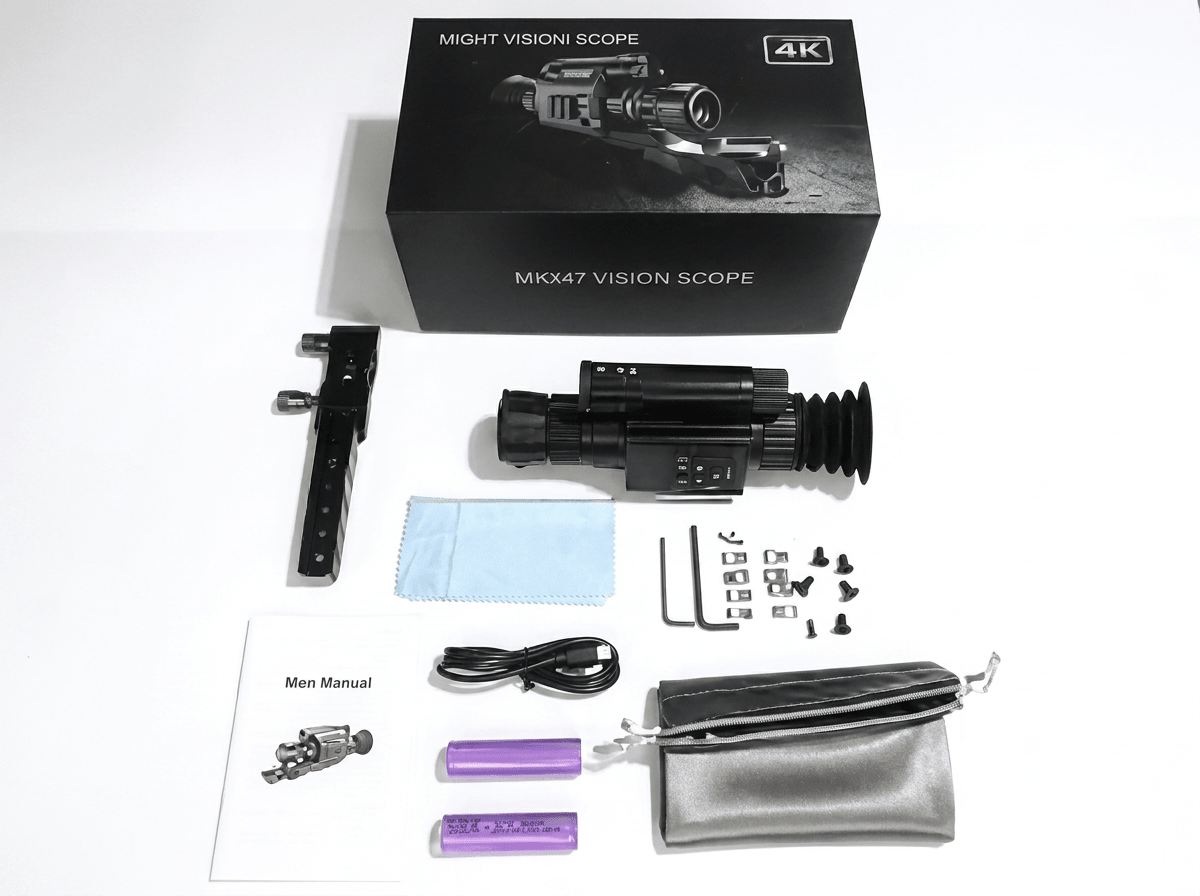

In the Box
- USB cable
- User manual
